Euro containers

Stacking Euro containers in 23 catalog sizes, from 300 × 200 to 1200 × 400 mm footprints. Compare dimensions and volumes for industrial storage.

ReferenceEU23 / EU43 / EU46 / EU48 / EU49 / EU86 / EU412

Request a quote View model specifications

MOQ, customization and lead time depend on the selected model and order.

Compare 23 catalog references ↓

Reference specifications

Euro containers reference specifications
Outside footprints	300 × 200 / 400 × 300 / 600 × 400 / 800 × 400 / 900 × 400 / 800 × 600 / 1200 × 400 mm
Material description in catalog	Copolymer

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

Outside footprint and usable internal dimensions
Contents and stacking requirements
Base, lid and handling-system compatibility
Material, labels and quantity

Send your requirements ↗

Models & specifications

23 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Euro containers: catalog model comparison
Model	Outside L × W × H (mm)	Inside L × W × H (mm)	Catalog volume, unit to confirm	Inquiry
EU2311	300 × 200 × 120 11.8 × 7.9 × 4.7 in	265 × 165 × 110 10.4 × 6.5 × 4.3 in	4.0	Request quote
EU23148	300 × 200 × 148 11.8 × 7.9 × 5.8 in	265 × 165 × 140 10.4 × 6.5 × 5.5 in	5.1	Request quote
EU4311	400 × 300 × 120 15.7 × 11.8 × 4.7 in	365 × 265 × 110 14.4 × 10.4 × 4.3 in	9.1	Request quote
EU43148	400 × 300 × 148 15.7 × 11.8 × 5.8 in	365 × 265 × 140 14.4 × 10.4 × 5.5 in	11.8	Request quote
EU4316	400 × 300 × 170 15.7 × 11.8 × 6.7 in	365 × 265 × 160 14.4 × 10.4 × 6.3 in	13.6	Request quote
EU4322	400 × 300 × 230 15.7 × 11.8 × 9.1 in	365 × 265 × 220 14.4 × 10.4 × 8.7 in	19.0	Request quote
EU4328	400 × 300 × 280 15.7 × 11.8 × 11 in	365 × 265 × 270 14.4 × 10.4 × 10.6 in	23.5	Request quote
EU4611	600 × 400 × 120 23.6 × 15.7 × 4.7 in	565 × 365 × 110 22.2 × 14.4 × 4.3 in	19.7	Request quote
EU46148	600 × 400 × 148 23.6 × 15.7 × 5.8 in	565 × 365 × 140 22.2 × 14.4 × 5.5 in	25.6	Request quote
EU4616	600 × 400 × 170 23.6 × 15.7 × 6.7 in	565 × 365 × 160 22.2 × 14.4 × 6.3 in	29.6	Request quote
EU4622	600 × 400 × 230 23.6 × 15.7 × 9.1 in	565 × 365 × 220 22.2 × 14.4 × 8.7 in	41.4	Request quote
EU4628	600 × 400 × 280 23.6 × 15.7 × 11 in	565 × 365 × 270 22.2 × 14.4 × 10.6 in	51.2	Request quote
EU4633	600 × 400 × 340 23.6 × 15.7 × 13.4 in	565 × 365 × 330 22.2 × 14.4 × 13 in	63.0	Request quote
EU4822	800 × 400 × 230 31.5 × 15.7 × 9.1 in	765 × 365 × 220 30.1 × 14.4 × 8.7 in	56.2	Request quote
EU4833	800 × 400 × 340 31.5 × 15.7 × 13.4 in	765 × 365 × 330 30.1 × 14.4 × 13 in	85.7	Request quote
EU4911	900 × 400 × 120 35.4 × 15.7 × 4.7 in	865 × 365 × 110 34.1 × 14.4 × 4.3 in	30.4	Request quote
EU4922	900 × 400 × 230 35.4 × 15.7 × 9.1 in	865 × 365 × 220 34.1 × 14.4 × 8.7 in	63.7	Request quote
EU8611	800 × 600 × 120 31.5 × 23.6 × 4.7 in	765 × 565 × 110 30.1 × 22.2 × 4.3 in	41.0	Request quote
EU8622	800 × 600 × 230 31.5 × 23.6 × 9.1 in	765 × 565 × 220 30.1 × 22.2 × 8.7 in	88.0	Request quote
EU8628	800 × 600 × 280 31.5 × 23.6 × 11 in	765 × 565 × 270 30.1 × 22.2 × 10.6 in	108.9	Request quote
EU8633	800 × 600 × 340 31.5 × 23.6 × 13.4 in	765 × 565 × 330 30.1 × 22.2 × 13 in	134.0	Request quote
EU41211	1200 × 400 × 120 47.2 × 15.7 × 4.7 in	1165 × 365 × 110 45.9 × 14.4 × 4.3 in	41.0	Request quote
EU41222	1200 × 400 × 230 47.2 × 15.7 × 9.1 in	1165 × 365 × 220 45.9 × 14.4 × 8.7 in	90.2	Request quote

Product details

A closer look at construction and available accessories.

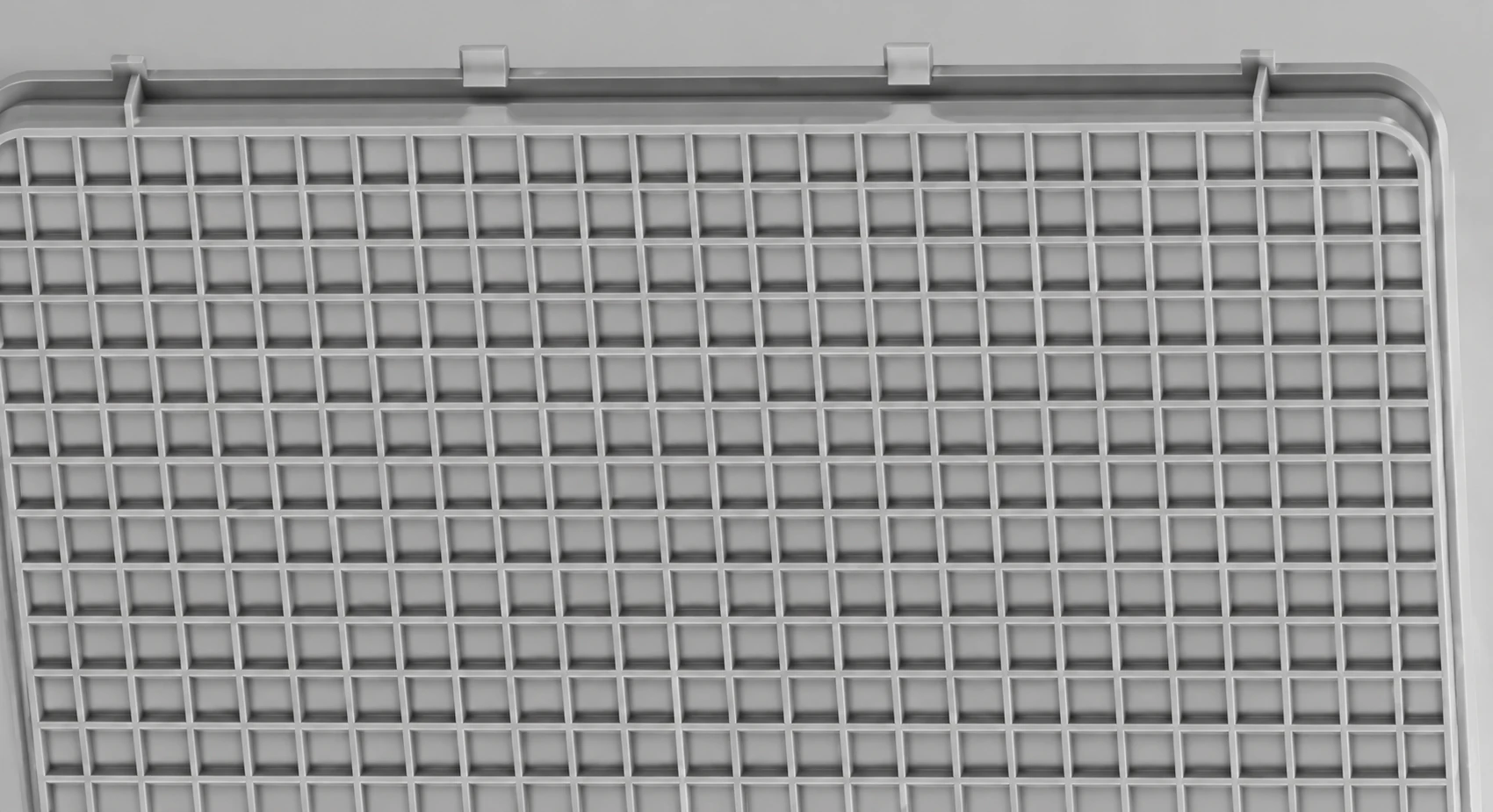

Grid-pattern base — Euro containers — Grid-pattern base
Base detail from the Euro container range. Specify the base design needed for your handling equipment.

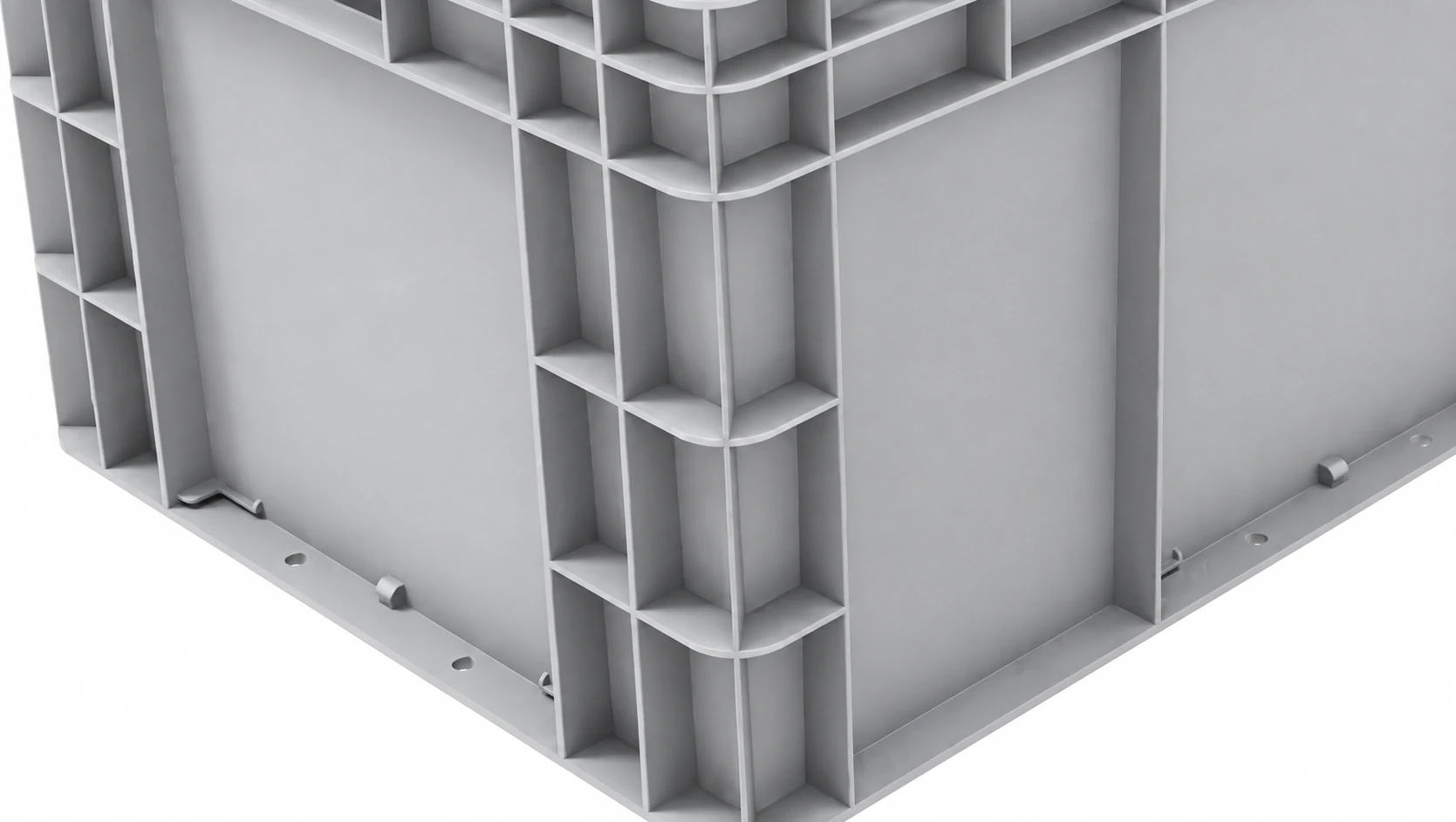

Ribbed corner construction — Euro containers — Ribbed corner construction
External corner ribs shown on a Euro container. Dimensions and construction are confirmed for the chosen model.

In use & system examples

Examples to help plan your installation. The selected model and quotation define compatibility and what is included.

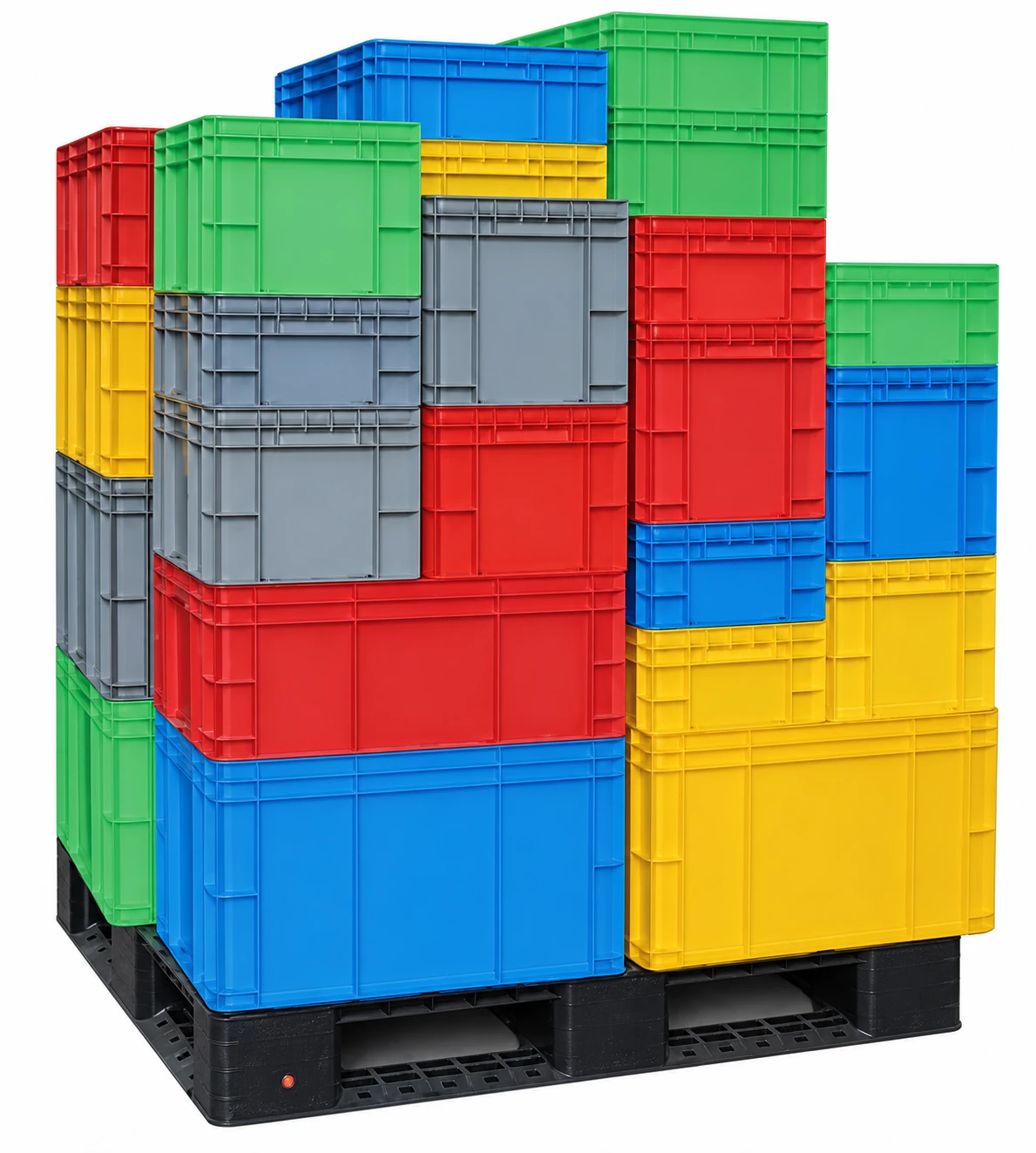

Palletized container assortment — Euro containers — Palletized container assortment
Example of mixed container sizes arranged on a pallet. Confirm the actual footprints and stacking combination; the pictured assortment is not a fixed set.

Product selection & purchasing

Sourcing Euro containers

Applications & product range

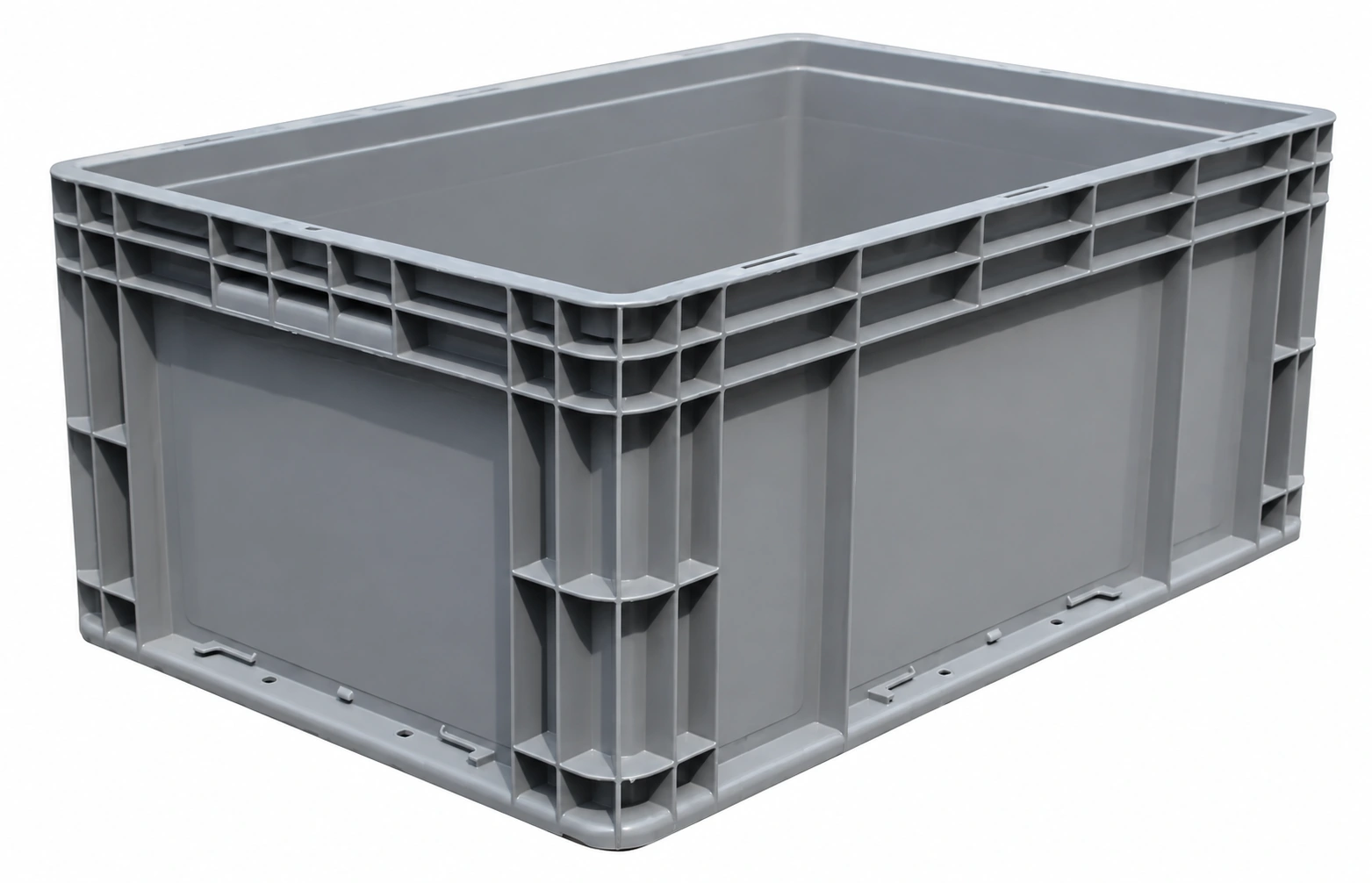

Straight-sided Euro containers support component storage and internal distribution. The range includes 23 sizes across seven outside footprints, with molded handles, ribbed walls and illustrated base options. Compare internal dimensions and catalog volumes for each reference.

Configuration & purchasing requirements

Select the outside footprint for the shelving or handling system, then check usable internal dimensions. Specify contents, required stacking load, base design and any conveyor interface. Confirm polymer grade, lid compatibility and labeling options for the exact reference.
