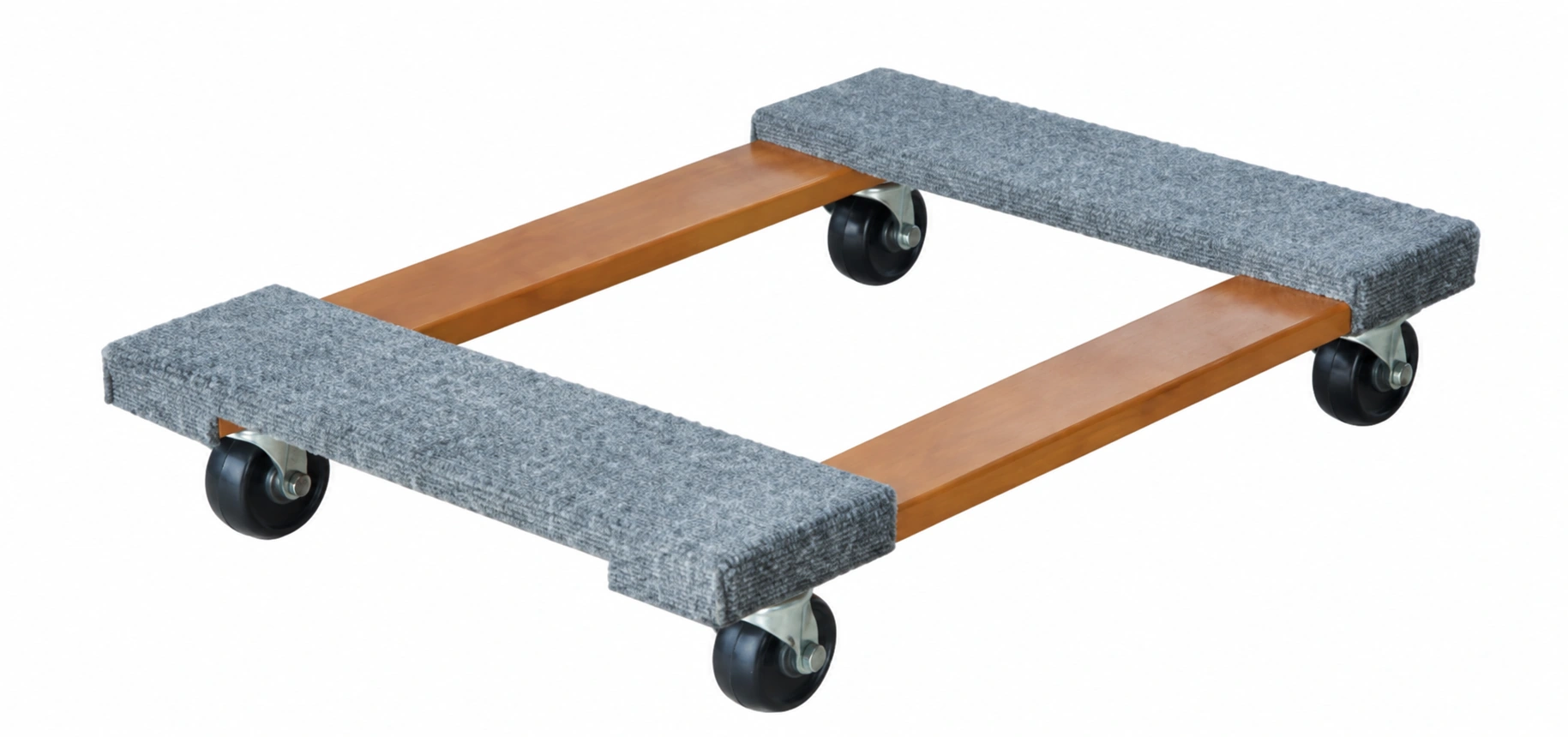

TC4302 wooden-frame furniture dolly with four casters — Product overview 28 catalog model references · Product reference image.

Material handling

Furniture dollies

Moving dollies with wood, plastic and frame-style platforms in multiple footprints.

Reference28 catalog model references

Request a quote View model specifications

MOQ, customization and lead time depend on the selected model and order.

Reference specifications

Furniture dollies reference specifications
Platform	Material and support layout specified by model
Load conditions	Confirm load distribution and contact area for the selected dolly

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

Load footprint and required capacity
Frame and contact-surface material
Wheel material and floor conditions
Packaging and order quantity

Send your requirements ↗

Models & specifications

28 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Furniture dollies: catalog model comparison
Model	Catalog load capacity	Wheel specification	Body size (L × W × H)	Overall L × W × H (mm)	Wheel size listed	Inquiry
PH0402A	30 kg 66 lb	1.5″ TPR	410 × 285 × 73 mm 16.1 × 11.2 × 2.9 in	—	—	Request quote
PH0402B	30 kg 66 lb	1.5″ nylon	410 × 285 × 62 mm 16.1 × 11.2 × 2.4 in	—	—	Request quote
PH0801	60 kg 132 lb	3″	( mm)L420XW285Xh100	—	—	Request quote
PH1008A	80 kg 176 lb	2.5″	600 × 400 × 115 mm 23.6 × 15.7 × 4.5 in	—	—	Request quote
PH1008D	100 kg 220 lb	3″	600 × 400 × 120 mm 23.6 × 15.7 × 4.7 in	—	—	Request quote
PH1008E	80 kg 176 lb	2″	495 × 365 × 110 mm 19.5 × 14.4 × 4.3 in	—	—	Request quote
PH1008R	100 kg 220 lb	3″	600 × 400 × 132 mm 23.6 × 15.7 × 5.2 in	—	—	Request quote
PH2002	200 kg 441 lb	3″	720 × 520 × 150 mm 28.3 × 20.5 × 5.9 in	—	—	Request quote
TC4301	—	—	—	700 × 475 × 140 27.6 × 18.7 × 5.5 in	3 inches	Request quote
TC4302	—	—	—	460 × 310 × 135 18.1 × 12.2 × 5.3 in	3 inches	Request quote
TC4303	—	—	—	510 × 510 × 140 20.1 × 20.1 × 5.5 in	3 inches	Request quote
TC4304	—	—	—	620 × 420 × 140 24.4 × 16.5 × 5.5 in	3 inches	Request quote
TC4315	100 kg 220 lb	3″ solid	600 × 400 × 110 mm 23.6 × 15.7 × 4.3 in	—	—	Request quote
TC4315A	100 kg 220 lb	3″ solid	497 × 370 × 115 mm 19.6 × 14.6 × 4.5 in	—	—	Request quote
TC4317	300 kg 661 lb	3″ solid	765 × 465 × 140 mm 30.1 × 18.3 × 5.5 in	—	—	Request quote
TC4319	100 kg 220 lb	3″ solid	600 × 300 × 115 mm 23.6 × 11.8 × 4.5 in	—	—	Request quote
TC4320	100 kg 220 lb	4″ solid	540 × 375 × 175 mm 21.3 × 14.8 × 6.9 in	—	—	Request quote
TC4321	100 kg 220 lb	3″ solid	680 × 475 × 143 mm 26.8 × 18.7 × 5.6 in	—	—	Request quote
TC4322	100 kg 220 lb	3″ solid	685 × 475 × 180 mm 27 × 18.7 × 7.1 in	—	—	Request quote
TC4322L	100 kg 220 lb	3″ solid	450 × 350 × 136 mm 17.7 × 13.8 × 5.4 in	—	—	Request quote
TC4323	100 kg 220 lb	3″ solid	557 × 370 × 122 mm 21.9 × 14.6 × 4.8 in	—	—	Request quote
TC4326	100 kg 220 lb	3″ solid	600 × 450 × 140 mm 23.6 × 17.7 × 5.5 in	—	—	Request quote
TC4327	100 kg 220 lb	3″ solid	450 × 300 × 135 mm 17.7 × 11.8 × 5.3 in	—	—	Request quote
TC4330	300 kg 661 lb	4″ solid	760 × 455 × 175 mm 29.9 × 17.9 × 6.9 in	—	—	Request quote
TC4333	100 kg 220 lb	3″ solid	900 × 600 × 135 mm 35.4 × 23.6 × 5.3 in	—	—	Request quote
TC4333A	100 kg 220 lb	3″ solid	600 × 300 × 130 mm 23.6 × 11.8 × 5.1 in	—	—	Request quote
TC4334	100 kg 220 lb	3″ solid	900 × 450 × 135 mm 35.4 × 17.7 × 5.3 in	—	—	Request quote
TC4335	100 kg 220 lb	3″ solid	600 × 450 × 135 mm 23.6 × 17.7 × 5.3 in	—	—	Request quote

Product selection & purchasing

Sourcing Furniture dollies

Applications & product range

Low-platform moving dollies support suitable furniture, cartons and equipment. Compare footprint, catalog load and wheel references with the item to be moved.

Configuration & purchasing requirements

Match the frame footprint and contact surface to the load. Specify required capacity, floor finish, wheel material and any non-marking requirement. Confirm frame construction, pad material, overall height and packaging against the current model drawing.

OEM options, samples & sourcing services →
