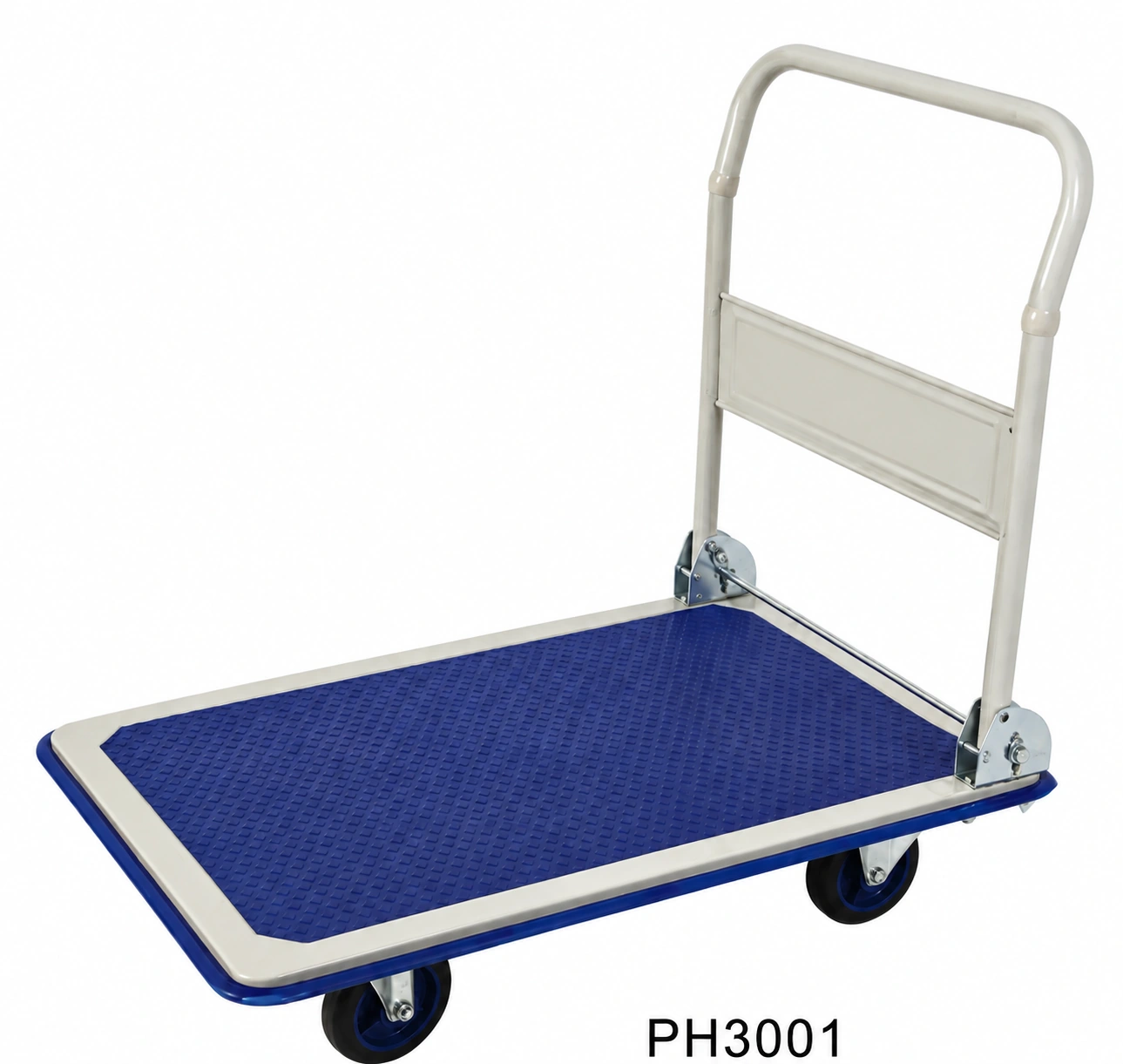

PH3001 platform truck with a flat deck and upright handle — Product overview 95 catalog model references · Product reference image.

Material handling

Platform trucks

Platform trucks with compact, multi-tier and larger-deck configurations for stock and supply handling.

Reference95 catalog model references

Request a quote View model specifications

MOQ, customization and lead time depend on the selected model and order.

Reference specifications

Platform trucks reference specifications
Configuration	Deck and handle layout vary by reference
Selection	Compare the model table and request the exact drawing

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

Deck dimensions and handle configuration
Required working load
Caster material, layout and brakes
Quantity and shipping configuration

Send your requirements ↗

Models & specifications

95 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Platform trucks: catalog model comparison
Model	Catalog load capacity	Wheel specification	Body size (L × W × H)	Catalog platform L × W (mm)	Wheel size listed	Inquiry
PH0401	40 kg 88 lb	4″	605 × 395 × 760 mm (h 145) 23.8 × 15.6 × 29.9 in (h 5.7)	—	—	Request quote
PH0602A	60 kg 132 lb	4″	660 × 440 × 810 mm (h 145) 26 × 17.3 × 31.9 in (h 5.7)	—	—	Request quote
PH0603	60 kg 132 lb	4″	672 × 420 × 880 mm (h 260) 26.5 × 16.5 × 34.6 in (h 10.2)	—	—	Request quote
PH0604	60 kg 132 lb	4″	672 × 420 × 860 mm (h 260) 26.5 × 16.5 × 33.9 in (h 10.2)	—	—	Request quote
PH0604A	60 kg 132 lb	4″	630 × 395 × 880 mm (h 260) 24.8 × 15.6 × 34.6 in (h 10.2)	—	—	Request quote
PH0605	60 kg 132 lb	4″	535 × 400 × 880 mm (h 260) 21.1 × 15.7 × 34.6 in (h 10.2)	—	—	Request quote
PH0605A	60 kg 132 lb	4″	530 × 400 × 880 mm (h 260) 20.9 × 15.7 × 34.6 in (h 10.2)	—	—	Request quote
PH0620	60 kg 132 lb	4″	620 × 400 × 915 mm (h 340) 24.4 × 15.7 × 36 in (h 13.4)	—	—	Request quote
PH1001P	100 kg 220 lb	4″	705 × 452 × 825 mm (h 145) 27.8 × 17.8 × 32.5 in (h 5.7)	—	—	Request quote
PH1002AL	100 kg 220 lb	4″	720 × 410 × 820 mm (h 165) 28.3 × 16.1 × 32.3 in (h 6.5)	—	—	Request quote
PH1003AL	100 kg 220 lb	—	710 × 415 × 960 mm (h 170) 28 × 16.3 × 37.8 in (h 6.7)	—	—	Request quote
PH1005	100 kg 220 lb	4″	650 × 406 × 785 mm (h 135) 25.6 × 16 × 30.9 in (h 5.3)	—	—	Request quote
PH1006	100 kg 220 lb	4″	625 × 380 × 780 mm (h 145) 24.6 × 15 × 30.7 in (h 5.7)	—	—	Request quote
PH1007	100 kg 220 lb	4″	600 × 400 × 785 mm (h 150) 23.6 × 15.7 × 30.9 in (h 5.9)	—	—	Request quote
PH1007A	100 kg 220 lb	4″	600 × 400 × 785 mm (h 160) 23.6 × 15.7 × 30.9 in (h 6.3)	—	—	Request quote
PH1007B	100 kg 220 lb	4″	600 × 400 × 785 mm (h 165) 23.6 × 15.7 × 30.9 in (h 6.5)	—	—	Request quote
PH1007C	120 kg 265 lb	4″	600 × 400 × 780 mm (h 160) 23.6 × 15.7 × 30.7 in (h 6.3)	—	—	Request quote
PH1007D	120 kg 265 lb	4″	600 × 400 × 780 mm (h 145) 23.6 × 15.7 × 30.7 in (h 5.7)	—	—	Request quote
PH1008B	80 kg 176 lb	4″	600 × 400 × 710 mm 23.6 × 15.7 × 28 in	—	—	Request quote
PH1008C	80 kg 176 lb	2.5″	640 × 400 × 900 mm (h 700) 25.2 × 15.7 × 35.4 in (h 27.6)	—	—	Request quote
PH1009	—	—	—	600 × 385 23.6 × 15.2 in	3 inches	Request quote
PH1009A	100 kg 220 lb	3″	600 × 385 × 790 mm (h 127) 23.6 × 15.2 × 31.1 in (h 5)	—	—	Request quote
PH1009B	60 kg 132 lb	3″	600 × 385 × 810 mm (h 127) 23.6 × 15.2 × 31.9 in (h 5)	—	—	Request quote
PH1009S	80 kg 176 lb	3″	630 × 385 × 790 mm (h 125) 24.8 × 15.2 × 31.1 in (h 4.9)	—	—	Request quote
PH1010	60 kg 132 lb	3″	435 × 385 × 745 mm (h 120) 17.1 × 15.2 × 29.3 in (h 4.7)	—	—	Request quote
PH1010B	60 kg 132 lb	3″	435 × 385 × 790 mm (h 122) 17.1 × 15.2 × 31.1 in (h 4.8)	—	—	Request quote
PH1010C	60 kg 132 lb	3″	435 × 380 × 770 mm (h 135) 17.1 × 15 × 30.3 in (h 5.3)	—	—	Request quote
PH1010D	60 kg 132 lb	3″	435 × 380 × 790 mm (h 135) 17.1 × 15 × 31.1 in (h 5.3)	—	—	Request quote
PH1501	150 kg 331 lb	4″	725 × 472 × 820 mm (h 135) 28.5 × 18.6 × 32.3 in (h 5.3)	—	—	Request quote
PH1501A	150 kg 331 lb	4″	725 × 472 × 820 mm (h 135) 28.5 × 18.6 × 32.3 in (h 5.3)	—	—	Request quote
PH1501S	150 kg 331 lb	4″	725 × 472 × 895 mm (h 135) 28.5 × 18.6 × 35.2 in (h 5.3)	—	—	Request quote
PH1504	150 kg 331 lb	4″	725 × 472 × 820 mm (h 135) 28.5 × 18.6 × 32.3 in (h 5.3)	—	—	Request quote
PH1505	150 kg 331 lb	4″	725 × 470 × 820 mm (h 135) 28.5 × 18.5 × 32.3 in (h 5.3)	—	—	Request quote
PH1506	150 kg 331 lb	4″	725 × 472 × 820 mm (h 135) 28.5 × 18.6 × 32.3 in (h 5.3)	—	—	Request quote
PH1508	150 kg 331 lb	4″	725 × 470 × 860 mm (h 135) 28.5 × 18.5 × 33.9 in (h 5.3)	—	—	Request quote
PH1508A	150 kg 331 lb	4″	735 × 470 × 810 mm (h 135) 28.9 × 18.5 × 31.9 in (h 5.3)	—	—	Request quote
PH1509	150 kg 331 lb	4″	725 × 470 × 860 mm (h 680) 28.5 × 18.5 × 33.9 in (h 26.8)	—	—	Request quote
PH1509A	150 kg 331 lb	4″	735 × 470 × 950 mm (h 680) 28.9 × 18.5 × 37.4 in (h 26.8)	—	—	Request quote
PH1510	120 kg 265 lb	4″	725 × 472 × 910 mm (h 680) 28.5 × 18.6 × 35.8 in (h 26.8)	—	—	Request quote
PH1510A	200 kg 441 lb	4″	745 × 470 × 950 mm (h 685) 29.3 × 18.5 × 37.4 in (h 27)	—	—	Request quote
PH1510B	150 kg 331 lb	4″ TPR	725 × 460 × 940 mm (h 670) 28.5 × 18.1 × 37 in (h 26.4)	—	—	Request quote
PH1511P	150 kg 331 lb	4″	708 × 450 × 886 mm (h 165) 27.9 × 17.7 × 34.9 in (h 6.5)	—	—	Request quote
PH1512P	150 kg 331 lb	4″	708 × 452 × 850 mm (h 165) 27.9 × 17.8 × 33.5 in (h 6.5)	—	—	Request quote
PH1512P-A	150 kg 331 lb	4″	740 × 450 × 885 mm (h 165) 29.1 × 17.7 × 34.8 in (h 6.5)	—	—	Request quote
PH1513P	150 kg 331 lb	4″	710 × 453 × 880 mm (h 162) 28 × 17.8 × 34.6 in (h 6.4)	—	—	Request quote
PH1514	150 kg 331 lb	4″	708 × 452 × 950 mm (h 680) 27.9 × 17.8 × 37.4 in (h 26.8)	—	—	Request quote
PH1514A	150 kg 331 lb	4″	708 × 452 × 950 mm (h 680) 27.9 × 17.8 × 37.4 in (h 26.8)	—	—	Request quote
PH1515	200 kg 441 lb	4″	820 × 500 × 860 mm (h 655) 32.3 × 19.7 × 33.9 in (h 25.8)	—	—	Request quote
PH1516P	150 kg 331 lb	4″	825 × 450 × 825 mm (h 140) 32.5 × 17.7 × 32.5 in (h 5.5)	—	—	Request quote
PH1521	150 kg 331 lb	4″	725 × 470 × 820 mm (h 135) 28.5 × 18.5 × 32.3 in (h 5.3)	—	—	Request quote
PH1522	150 kg 331 lb	4″	725 × 470 × 790 mm (h 135) 28.5 × 18.5 × 31.1 in (h 5.3)	—	—	Request quote
PH1534	150 kg 331 lb	4″	710 × 440 × 880 mm (h 150) 28 × 17.3 × 34.6 in (h 5.9)	—	—	Request quote
PH1535	150 kg 331 lb	4″	740 × 490 × 840 mm (h 165) 29.1 × 19.3 × 33.1 in (h 6.5)	—	—	Request quote
PH1535S	150 kg 331 lb	4″	820 × 490 × 865 mm (h 565) 32.3 × 19.3 × 34.1 in (h 22.2)	—	—	Request quote
PH1536	150 kg 331 lb	4″	760 × 475 × 795 mm (h 135) 29.9 × 18.7 × 31.3 in (h 5.3)	—	—	Request quote
PH1537A	150 kg 331 lb	4″	700 × 445 × 855 mm (h 155) 27.6 × 17.5 × 33.7 in (h 6.1)	—	—	Request quote
PH1537S	150 kg 331 lb	4″	700 × 445 × 895 mm (h 155) 27.6 × 17.5 × 35.2 in (h 6.1)	—	—	Request quote
PH1540	150 kg 331 lb	4″	895 × 475 × 835 mm (h 135) 35.2 × 18.7 × 32.9 in (h 5.3)	—	—	Request quote
PH1542	150 kg 331 lb	4″	840 × 450 × 835 mm (h 135) 33.1 × 17.7 × 32.9 in (h 5.3)	—	—	Request quote
PH2001	200 kg 441 lb	4″	800 × 500 × 840 mm (h 150) 31.5 × 19.7 × 33.1 in (h 5.9)	—	—	Request quote
PH3001	300 kg 661 lb	5″	907 × 608 × 850 mm (h 195) 35.7 × 23.9 × 33.5 in (h 7.7)	—	—	Request quote
PH3001B	300 kg 661 lb	5″	907 × 608 × 850 mm (h 195) 35.7 × 23.9 × 33.5 in (h 7.7)	—	—	Request quote
PH3001D	300 kg 661 lb	5″	907 × 608 × 850 mm (h 195) 35.7 × 23.9 × 33.5 in (h 7.7)	—	—	Request quote
PH3001E	300 kg 661 lb	5″	907 × 608 × 850 mm (h 195) 35.7 × 23.9 × 33.5 in (h 7.7)	—	—	Request quote
PH3001S	300 kg 661 lb	5″	907 × 608 × 900 mm (h 195) 35.7 × 23.9 × 35.4 in (h 7.7)	—	—	Request quote
PH3002	300 kg 661 lb	5″	907 × 608 × 870 mm (h 685) 35.7 × 23.9 × 34.3 in (h 27)	—	—	Request quote
PH3002B	300 kg 661 lb	5″	910 × 600 × 995 mm (h 210) 35.8 × 23.6 × 39.2 in (h 8.3)	—	—	Request quote
PH3002C	300 kg 661 lb	5″	900 × 600 × 990 mm (h 680) 35.4 × 23.6 × 39 in (h 26.8)	—	—	Request quote
PH3002S	300 kg 661 lb	5″	900 × 600 × 1020 mm (h 208) 35.4 × 23.6 × 40.2 in (h 8.2)	—	—	Request quote
PH3003	300 kg 661 lb	6″	1285 × 465 × 945 mm (h 250) 50.6 × 18.3 × 37.2 in (h 9.8)	—	—	Request quote
PH3004	300 kg 661 lb	8″ × 2.50-4	907 × 608 × 956 mm (h 285) 35.7 × 23.9 × 37.6 in (h 11.2)	—	—	Request quote
PH3005	300 kg 661 lb	8″	910 × 608 × 965 mm (h 285) 35.8 × 23.9 × 38 in (h 11.2)	—	—	Request quote
PH3006	300 kg 661 lb	6″	952 × 610 × 910 mm (h 250) 37.5 × 24 × 35.8 in (h 9.8)	—	—	Request quote
PH3011	300 kg 661 lb	8″ × 2.50-4	907 × 608 × 965 mm (h 280) 35.7 × 23.9 × 38 in (h 11)	—	—	Request quote
PH3012P	300 kg 661 lb	5″	900 × 600 × 890 mm (h 215) 35.4 × 23.6 × 35 in (h 8.5)	—	—	Request quote
PH3013	300 kg 661 lb	5″	910 × 608 × 980 mm (h 200) 35.8 × 23.9 × 38.6 in (h 7.9)	—	—	Request quote
PH3014	300 kg 661 lb	5″ TPR	900 × 600 × 1030 mm (h 760) 35.4 × 23.6 × 40.6 in (h 29.9)	—	—	Request quote
PH3015A	300 kg 661 lb	5″ TPR	905 × 600 × 1030 mm (h 740) 35.6 × 23.6 × 40.6 in (h 29.1)	—	—	Request quote
PH3015AL	300 kg 661 lb	8″ × 2″	1425 × 655 × 1090 mm (h 300) 56.1 × 25.8 × 42.9 in (h 11.8)	—	—	Request quote
PH3016P	300 kg 661 lb	5″	900 × 600 × 890 mm (h 215) 35.4 × 23.6 × 35 in (h 8.5)	—	—	Request quote
PH3017	300 kg 661 lb	4″	900 × 600 × 870 mm (h 150) 35.4 × 23.6 × 34.3 in (h 5.9)	—	—	Request quote
PH3018	300 kg 661 lb	8″ PU	905 × 605 × 960 mm (h 280) 35.6 × 23.8 × 37.8 in (h 11)	—	—	Request quote
PH3019	300 kg 661 lb	5″ TPR	875 × 570 × 870 mm (h 150) 34.4 × 22.4 × 34.3 in (h 5.9)	—	—	Request quote
PH3020	300 kg 661 lb	5″	900 × 600 × 870 mm (h 200) 35.4 × 23.6 × 34.3 in (h 7.9)	—	—	Request quote
PH3020S	300 kg 661 lb	5″	900 × 600 × 900 mm (h 200) 35.4 × 23.6 × 35.4 in (h 7.9)	—	—	Request quote
PH3021	300 kg 661 lb	5″	900 × 600 × 870 mm (h 200) 35.4 × 23.6 × 34.3 in (h 7.9)	—	—	Request quote
PH5003	500 kg 1,102 lb	10″ × 3.50-4	1866 × 913 × 1000 mm (h 365) 73.5 × 35.9 × 39.4 in (h 14.4)	—	—	Request quote
PH5006	500 kg 1,102 lb	6″	930 × 915 × 1900 mm (h 240) 36.6 × 36 × 74.8 in (h 9.4)	—	—	Request quote
PH5007	500 kg 1,102 lb	8″	1600 × 760 × 970 mm (h 290) 63 × 29.9 × 38.2 in (h 11.4)	—	—	Request quote
TC4126	300 kg 661 lb	5″ solid	1140 × 475 × 800 mm 44.9 × 18.7 × 31.5 in	—	—	Request quote
TC4217	300 kg 661 lb	5″ solid	1030 × 475 × 800 mm 40.6 × 18.7 × 31.5 in	—	—	Request quote
TC4341	200 kg 441 lb	4″ solid	750 × 610 × 175 mm 29.5 × 24 × 6.9 in	—	—	Request quote
TC4831	150 kg 331 lb	10″ / 6″ PU	1445 × 520 × 910 mm 56.9 × 20.5 × 35.8 in	—	—	Request quote
TC4833A	300 kg 661 lb	8″ × 2″ solid	1180 × 570 × 1220 mm 46.5 × 22.4 × 48 in	—	—	Request quote
TC4833B	320 kg 705 lb	8″ × 2″ solid	1205 × 570 × 1175 mm 47.4 × 22.4 × 46.3 in	—	—	Request quote

Product selection & purchasing

Sourcing Platform trucks

Applications & product range

Platform truck references cover different deck sizes, handle arrangements and shelf layouts. Compare catalog load, wheel and body-size references for moving goods through your facility.

Configuration & purchasing requirements

Choose a platform footprint around the goods and aisle space. Specify working load, handle height and folding requirements, wheel material and floor conditions. Confirm the exact deck construction, usable area, caster layout and packed dimensions with the quotation.
