Material handling

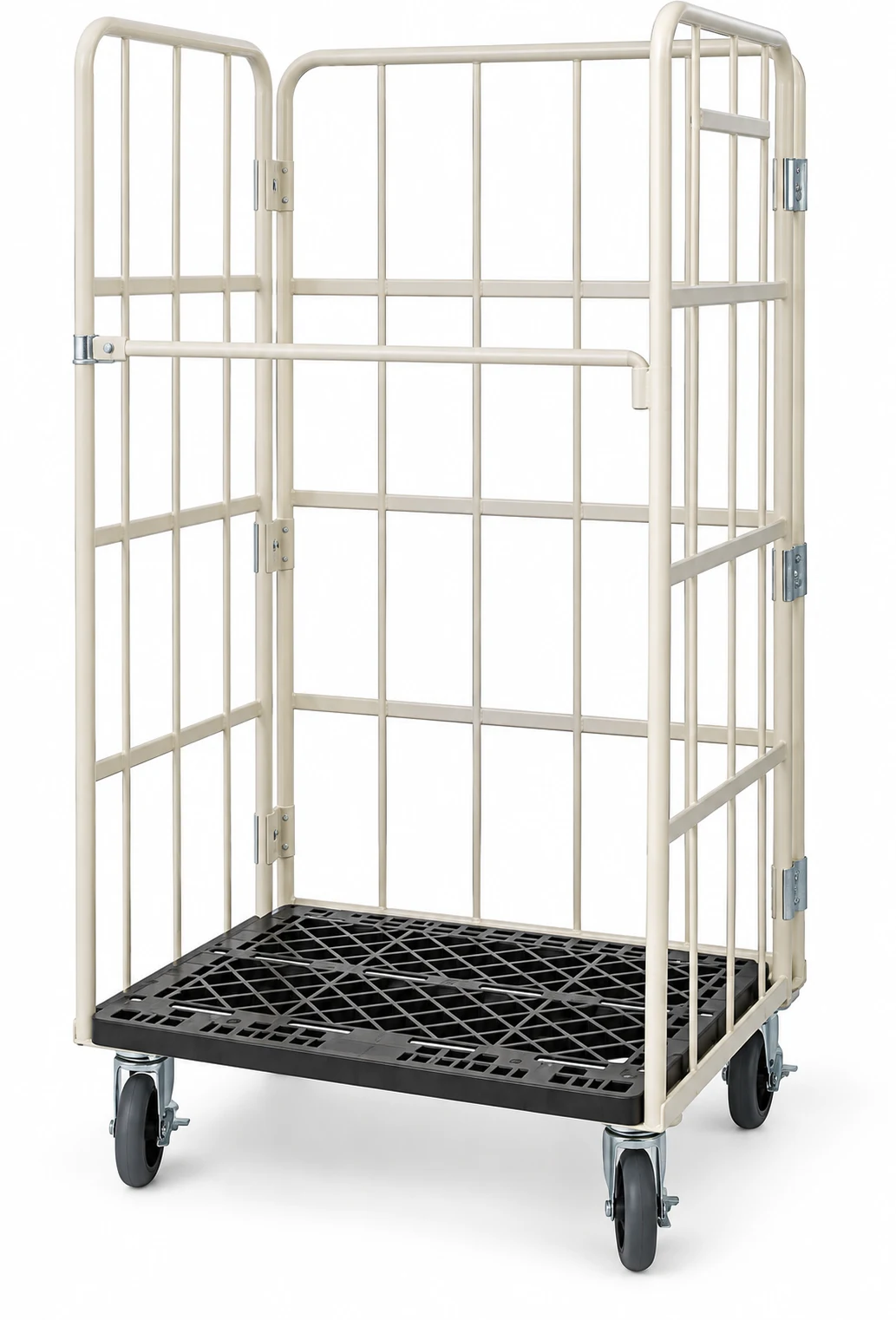

Roll containers & cage trolleys

Wheeled roll containers and cage trolleys for warehouse and distribution handling.

Reference24 catalog model references

Request a quote View model specifications

MOQ, customization and lead time depend on the selected model and order.

Reference specifications

Roll containers & cage trolleys reference specifications
Model selection	Compare the reference table below
Ordering	Model, quantity and destination specified with each inquiry

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

Model and required quantity
Destination and delivery requirements
Material, finish and configuration
Packaging, labeling and technical documentation

Send your requirements ↗

Models & specifications

24 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Roll containers & cage trolleys: catalog model comparison
Model	Catalog load capacity	Wheel specification	Body size (L × W × H)	Inquiry
TC4557	200 kg 441 lb	3″ solid	755 × 460 × 1300 mm 29.7 × 18.1 × 51.2 in	Request quote
TC4609	400 kg 882 lb	6″ solid	1100 × 440 × 1700 mm 43.3 × 17.3 × 66.9 in	Request quote
TC4616	400 kg 882 lb	6″ solid	1100 × 800 × 1700 mm 43.3 × 31.5 × 66.9 in	Request quote
TC4620	500 kg 1,102 lb	6″ solid	1100 × 800 × 1700 mm 43.3 × 31.5 × 66.9 in	Request quote
TC4622	500 kg 1,102 lb	5″ solid	1340 × 555 × 1900 mm 52.8 × 21.9 × 74.8 in	Request quote
TC4624	500 kg 1,102 lb	5″ solid	730 × 860 × 1575 mm 28.7 × 33.9 × 62 in	Request quote
TC4625	500 kg 1,102 lb	6″ solid	945 × 935 × 1695 mm 37.2 × 36.8 × 66.7 in	Request quote
TC4626	400 kg 882 lb	5″ solid	1000 × 800 × 1770 mm 39.4 × 31.5 × 69.7 in	Request quote
TC4628	300 kg 661 lb	5″ solid	1000 × 1000 × 1420 mm 39.4 × 39.4 × 55.9 in	Request quote
TC4629	400 kg 882 lb	6″ solid	650 × 850 × 1700 mm 25.6 × 33.5 × 66.9 in	Request quote
TC4630	400 kg 882 lb	6″ solid	1100 × 805 × 1700 mm 43.3 × 31.7 × 66.9 in	Request quote
TC4633	400 kg 882 lb	6″ solid	1100 × 800 × 1700 mm 43.3 × 31.5 × 66.9 in	Request quote
TC4642	400 kg 882 lb	6″ solid	1000 × 800 × 1770 mm 39.4 × 31.5 × 69.7 in	Request quote
TC4643	400 kg 882 lb	6″ solid	1000 × 800 × 1770 mm 39.4 × 31.5 × 69.7 in	Request quote
TC4646	400 kg 882 lb	6″ solid	1000 × 800 × 1770 mm 39.4 × 31.5 × 69.7 in	Request quote
TC4648	400 kg 882 lb	6″ solid	1000 × 700 × 1600 mm 39.4 × 27.6 × 63 in	Request quote
TC4650	300 kg 661 lb	4″ solid	900 × 600 × 1850 mm 35.4 × 23.6 × 72.8 in	Request quote
TC4670	400 kg 882 lb	5″ solid	1050 × 660 × 1750 mm 41.3 × 26 × 68.9 in	Request quote
TC4672	400 kg 882 lb	5″ solid	550 × 435 × 1700 mm 21.7 × 17.1 × 66.9 in	Request quote
TC4673	400 kg 882 lb	5″ solid	800 × 600 × 1700 mm 31.5 × 23.6 × 66.9 in	Request quote
TC4674	400 kg 882 lb	5″ solid	815 × 725 × 1720 mm 32.1 × 28.5 × 67.7 in	Request quote
TC4674-1	400 kg 882 lb	5″ solid	800 × 700 × 1700 mm 31.5 × 27.6 × 66.9 in	Request quote
TC4675	400 kg 882 lb	5″ solid	820 × 630 × 1500 mm 32.3 × 24.8 × 59.1 in	Request quote
TC4676	400 kg 882 lb	5″ solid	900 × 700 × 1730 mm 35.4 × 27.6 × 68.1 in	Request quote

Product selection & purchasing

Sourcing Roll containers & cage trolleys

Applications & product range

Roll containers organize goods for internal handling and distribution workflows. Compare frame dimensions, sides, shelf layouts and caster arrangements before choosing a reference.

Configuration & purchasing requirements

Provide required load, internal clearance, door or gate layout, shelves, nesting needs and wheel type. Confirm retention, brake and shipping configurations with the quotation.
