Material handling

Service & shelf carts

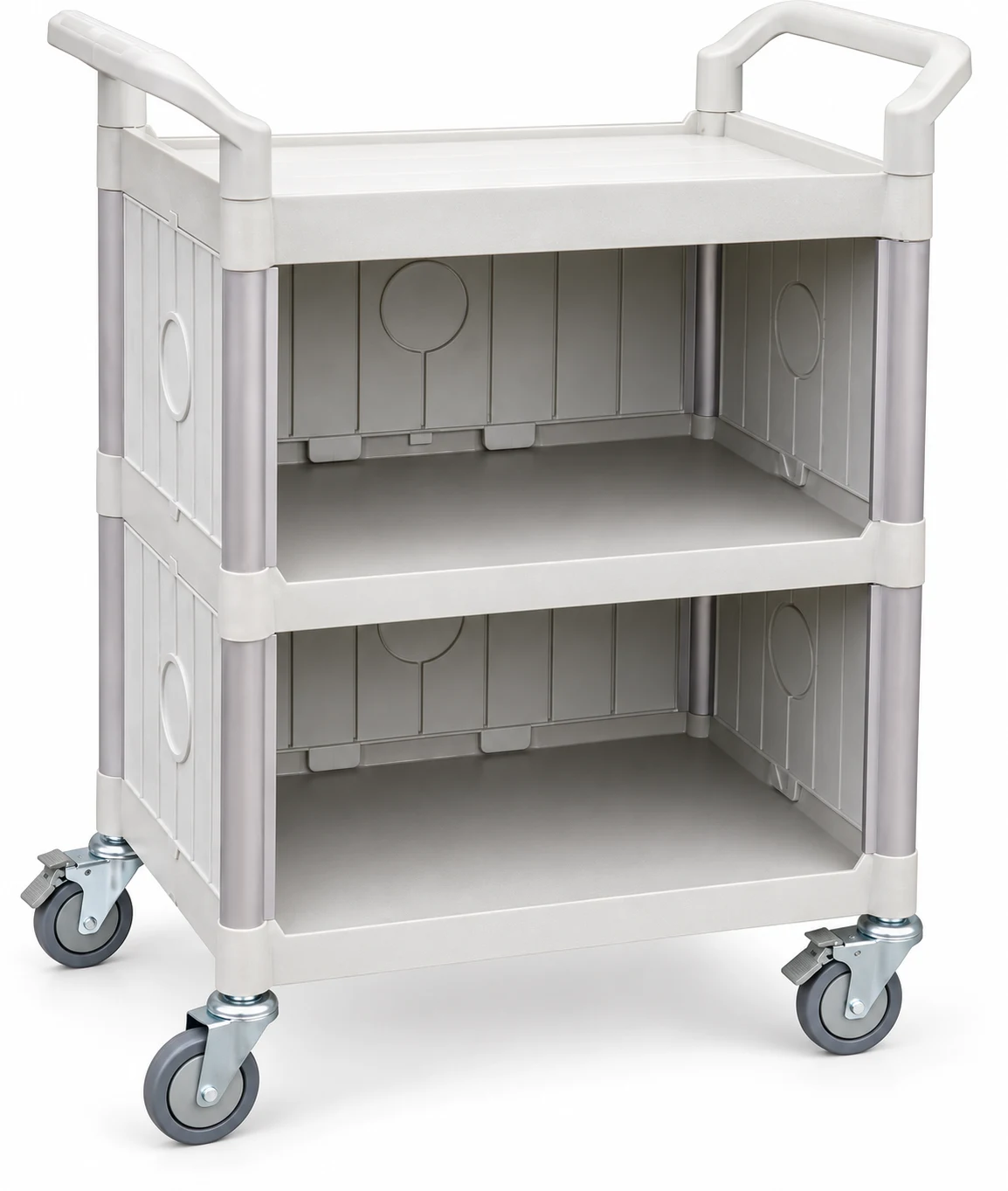

Multi-tier shelf carts for supplies, parts and service-area organization.

Reference11 catalog model references

Request a quote View model specifications

MOQ, customization and lead time depend on the selected model and order.

Reference specifications

Service & shelf carts reference specifications
Model selection	Compare the reference table below
Ordering	Model, quantity and destination specified with each inquiry

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

Model and required quantity
Destination and delivery requirements
Material, finish and configuration
Packaging, labeling and technical documentation

Send your requirements ↗

Models & specifications

11 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Service & shelf carts: catalog model comparison
Model	Catalog load capacity	Wheel specification	Body size (L × W × H)	Inquiry
TC4102	100 kg 220 lb	5″ solid	840 × 410 × 820 mm 33.1 × 16.1 × 32.3 in	Request quote
TC4103	100 kg 220 lb	5″ solid	840 × 410 × 820 mm 33.1 × 16.1 × 32.3 in	Request quote
TC4122	300 kg 661 lb	4″ solid	1380 × 565 × 880 mm 54.3 × 22.2 × 34.6 in	Request quote
TC4123AL	200 kg 441 lb	5″ solid	1070 × 495 × 910 mm 42.1 × 19.5 × 35.8 in	Request quote
TC4128	200 kg 441 lb	3″ solid	920 × 500 × 1195 mm 36.2 × 19.7 × 47 in	Request quote
TC4132	150 kg 331 lb	4″ TPR	850 × 480 × 1000 mm 33.5 × 18.9 × 39.4 in	Request quote
TC4133	150 kg 331 lb	4″ solid	870 × 490 × 950 mm 34.3 × 19.3 × 37.4 in	Request quote
TC4134	150 kg 331 lb	4″ TPR	850 × 480 × 1000 mm 33.5 × 18.9 × 39.4 in	Request quote
TC4135	150 kg 331 lb	4″ solid	990 × 490 × 1020 mm 39 × 19.3 × 40.2 in	Request quote
TC4140	150 kg 331 lb	4″ solid	1150 × 515 × 1025 mm 45.3 × 20.3 × 40.4 in	Request quote
TC4142	150 kg 331 lb	4″ TPR	1100 × 520 × 1560 mm 43.3 × 20.5 × 61.4 in	Request quote

Product selection & purchasing

Sourcing Service & shelf carts

Applications & product range

Service carts combine storage shelves and casters for moving supplies between work areas. Compare tier arrangement, body size and wheel specifications across the catalog references.

Configuration & purchasing requirements

Specify shelf clearances, distributed load, material, finish and caster preference. Request the exact shelf load limits and cleaning compatibility needed for your application.
