Material handling

Tray rack trolleys

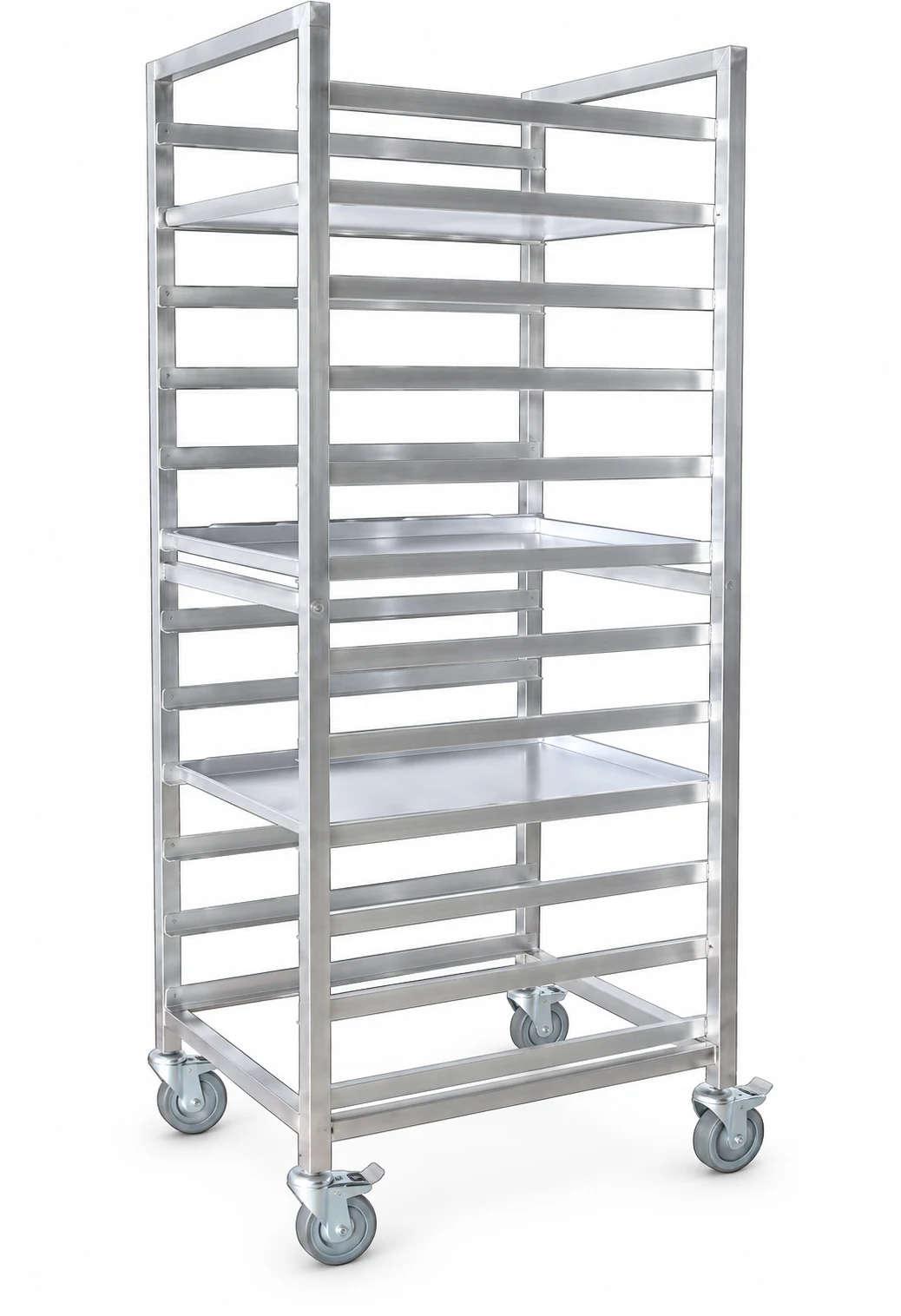

Mobile tray racks with several runner and shelf arrangements.

Reference6 catalog model references

Request a quote View model specifications

MOQ, customization and lead time depend on the selected model and order.

Reference specifications

Tray rack trolleys reference specifications
Model selection	Compare the reference table below
Ordering	Model, quantity and destination specified with each inquiry

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

Model and required quantity
Destination and delivery requirements
Material, finish and configuration
Packaging, labeling and technical documentation

Send your requirements ↗

Models & specifications

6 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Tray rack trolleys: catalog model comparison
Model	Catalog load capacity	Wheel specification	Body size (L × W × H)	Inquiry
TC4830	150 kg 331 lb	4″ solid	667 × 523 × 1750 mm 26.3 × 20.6 × 68.9 in	Request quote
TC4830-2	150 kg 331 lb	3″ solid	760 × 385 × 1735 mm 29.9 × 15.2 × 68.3 in	Request quote
TC4830-3	150 kg 331 lb	4″ solid	740 × 510 × 1550 mm 29.1 × 20.1 × 61 in	Request quote
TC4830-4	150 kg 331 lb	3″ solid	915 × 500 × 1190 mm 36 × 19.7 × 46.9 in	Request quote
TC4830-5	150 kg 331 lb	3″ solid	900 × 800 × 1650 mm 35.4 × 31.5 × 65 in	Request quote
TC4830A	150 kg 331 lb	5″ solid	555 × 380 × 890 mm 21.9 × 15 × 35 in	Request quote

Product selection & purchasing

Sourcing Tray rack trolleys

Applications & product range

Tray rack trolleys organize multiple trays in a vertical footprint. Compare overall size, runner layout and casters, then match the exact rack to your tray dimensions.

Configuration & purchasing requirements

Specify tray dimensions, runner spacing, tier count, load distribution and material. If used in food operations, request documentation and a finish appropriate to that use.
