Material handling

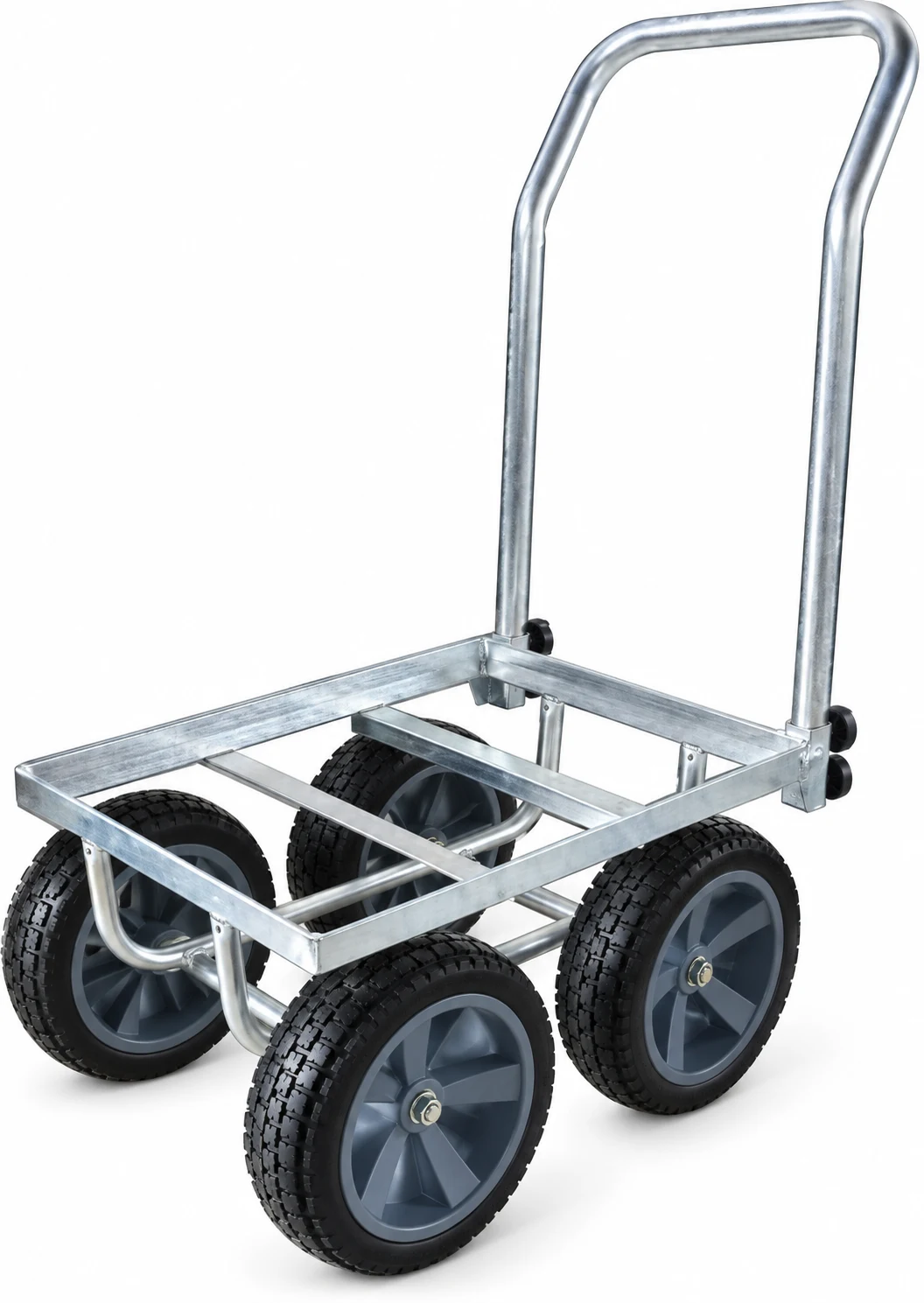

Open-frame utility carts

Open-frame and basket-style utility carts with compact handles and larger wheel options.

Reference7 catalog model references

Request a quote View model specifications

MOQ, customization and lead time depend on the selected model and order.

Reference specifications

Open-frame utility carts reference specifications
Model selection	Compare the reference table below
Ordering	Model, quantity and destination specified with each inquiry

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

Model and required quantity
Destination and delivery requirements
Material, finish and configuration
Packaging, labeling and technical documentation

Send your requirements ↗

Models & specifications

7 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Open-frame utility carts: catalog model comparison
Model	Catalog load capacity	Wheel specification	Body size (L × W × H)	Inquiry
TC4510AL-1	100 kg 220 lb	8″ × 2.50-4 pneumatic	700 × 450 × 870 mm 27.6 × 17.7 × 34.3 in	Request quote
TC4513AL-3	100 kg 220 lb	10″ × 3.50-4 pneumatic	1350 × 670 × 1000 mm 53.1 × 26.4 × 39.4 in	Request quote
TC4527AL	100 kg 220 lb	10″ × 3″ PU	670 × 390 × 858 mm 26.4 × 15.4 × 33.8 in	Request quote
TC4527S	50 kg 110 lb	10″ × 3″ PU	670 × 390 × 858 mm 26.4 × 15.4 × 33.8 in	Request quote
TC4801	25 kg 55 lb	8″ × 1.5″ EVA	530 × 460 × 855 mm 20.9 × 18.1 × 33.7 in	Request quote
TC4801A	25 kg 55 lb	8″ / 5″ PU	595 × 510 × 880 mm 23.4 × 20.1 × 34.6 in	Request quote
TC4805A	25 kg 55 lb	8″ × 1.5″ EVA	520 × 465 × 850 mm 20.5 × 18.3 × 33.5 in	Request quote

Product selection & purchasing

Sourcing Open-frame utility carts

Applications & product range

Utility cart references support movement of containers, supplies and equipment. Open-frame deck and basket arrangements offer different ways to support a defined load.

Configuration & purchasing requirements

Provide container dimensions, loaded weight, terrain and frame preference. Confirm deck supports, accessories and wheel configuration for the chosen reference.

OEM options, samples & sourcing services →
