Hose reels & reel carts, TC4701 reference configuration

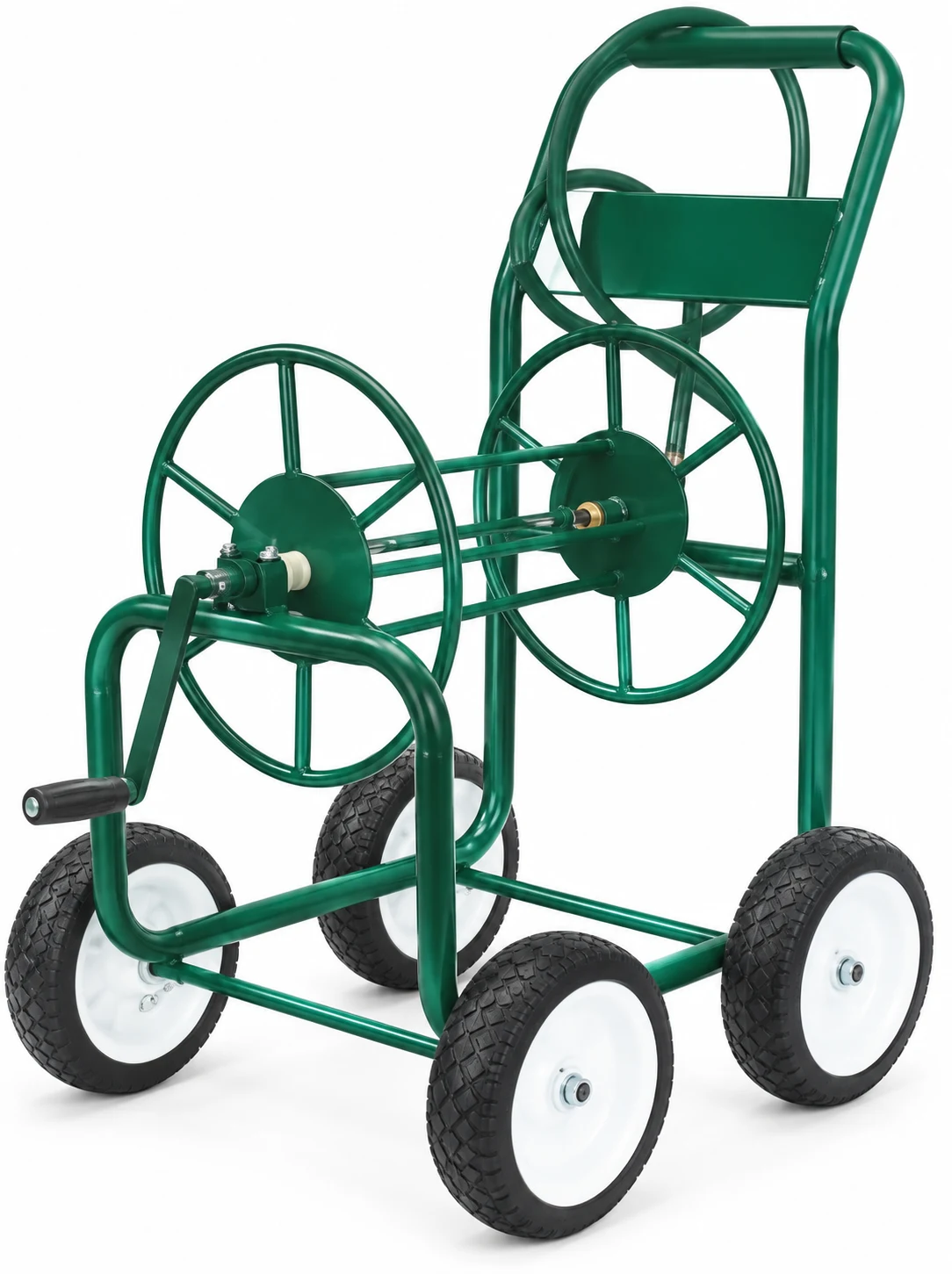

Product overview TC4701 configuration shown. Other references can differ in construction and dimensions.
Hose reels & reel carts, TC4701 reference configuration

TC4701 configuration shown. Other references can differ in construction and dimensions.

Garden & outdoor equipment

Hose reels & reel carts

Freestanding hose reels and wheeled hose reel carts for garden and grounds-maintenance ranges.

Reference42 catalog model references
Request a quote View model specifications

MOQ, customization and lead time depend on the selected model and order.

Compare 42 catalog references ↓

Reference specifications

Hose reels & reel carts reference specifications
Model selectionCompare the reference table below
OrderingModel, quantity and destination specified with each inquiry

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

  • Model and required quantity
  • Destination and delivery requirements
  • Material, finish and configuration
  • Packaging, labeling and technical documentation
Send your requirements ↗

Models & specifications

42 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Hose reels & reel carts: catalog model comparison
ModelWheel specificationBody size (L × W × H)Inquiry
TC470110″ solid925 × 625 × 1040 mm 36.4 × 24.6 × 40.9 inRequest quote
TC4702A—635 × 420 × 495 mm 25 × 16.5 × 19.5 inRequest quote
TC470310″ × 3.50-4 pneumatic957 × 625 × 1125 mm 37.7 × 24.6 × 44.3 inRequest quote
TC4704A—800 × 402 × 461 mm 31.5 × 15.8 × 18.1 inRequest quote
TC4705—800 × 440 × 508 mm 31.5 × 17.3 × 20 inRequest quote
TC470610″ × 3.50-4 pneumatic460 × 650 × 935 mm 18.1 × 25.6 × 36.8 inRequest quote
TC4706A8″ × 2.50-4 pneumatic525 × 670 × 885 mm 20.7 × 26.4 × 34.8 inRequest quote
TC4706B8″ × 2.50-4 pneumatic560 × 660 × 895 mm 22 × 26 × 35.2 inRequest quote
TC4706E10″ × 3″ PU560 × 660 × 895 mm 22 × 26 × 35.2 inRequest quote
TC470910″ × 3.50-4 / 8″ × 3.50-4 pneumatic910 × 560 × 1070 mm 35.8 × 22 × 42.1 inRequest quote
TC471010″ × 3.50-4 pneumatic965 × 570 × 1050 mm 38 × 22.4 × 41.3 inRequest quote
TC4710A10″ × 3.50-4 pneumatic845 × 630 × 1060 mm 33.3 × 24.8 × 41.7 inRequest quote
TC4710B10″ × 3.50-4 pneumatic770 × 600 × 980 mm 30.3 × 23.6 × 38.6 inRequest quote
TC4711A—600 × 425 × 480 mm 23.6 × 16.7 × 18.9 inRequest quote
TC4711B—665 × 400 × 445 mm 26.2 × 15.7 × 17.5 inRequest quote
TC471510″ × 3.50-4 pneumatic965 × 560 × 1010 mm 38 × 22 × 39.8 inRequest quote
TC4716A10″ × 3.50-4 pneumatic965 × 560 × 1010 mm 38 × 22 × 39.8 inRequest quote
TC471710″ × 3.50-4 pneumatic600 × 590 × 1010 mm 23.6 × 23.2 × 39.8 inRequest quote
TC4717A10″ × 3.50-4 pneumatic710 × 600 × 840 mm 28 × 23.6 × 33.1 inRequest quote
TC4717B10″ × 3.50-4 pneumatic950 × 550 × 940 mm 37.4 × 21.7 × 37 inRequest quote
TC4717C10″ × 3.50-4 pneumatic860 × 560 × 1080 mm 33.9 × 22 × 42.5 inRequest quote
TC471910″ × 3.50-4 pneumatic957 × 625 × 1125 mm 37.7 × 24.6 × 44.3 inRequest quote
TC4719B10″ × 3.50-4 pneumatic770 × 600 × 920 mm 30.3 × 23.6 × 36.2 inRequest quote
TC4719C8″ × 1.75″ solid540 × 465 × 930 mm 21.3 × 18.3 × 36.6 inRequest quote
TC472010″ × 3.50-4 pneumatic520 × 660 × 950 mm 20.5 × 26 × 37.4 inRequest quote
TC4722B12″ × 2.125″ pneumatic710 × 585 × 900 mm 28 × 23 × 35.4 inRequest quote
TC47237″ × 1.75″ solid435 × 405 × 890 mm 17.1 × 15.9 × 35 inRequest quote
TC47248″ × 2.50-4 pneumatic560 × 500 × 430 mm 22 × 19.7 × 16.9 inRequest quote
TC4724B8″ × 2.50-4 pneumatic630 × 740 × 840 mm 24.8 × 29.1 × 33.1 inRequest quote
TC472510″ × 3.50-4 pneumatic835 × 600 × 970 mm 32.9 × 23.6 × 38.2 inRequest quote
TC472610″ × 3.50-4 pneumatic1100 × 550 × 970 mm 43.3 × 21.7 × 38.2 inRequest quote
TC472710″ × 3.50-4 pneumatic1030 × 575 × 960 mm 40.6 × 22.6 × 37.8 inRequest quote
TC47287″ × 1.75″ solid650 × 750 × 825 mm 25.6 × 29.5 × 32.5 inRequest quote
TC4732A10″ × 3.50-4 pneumatic1030 × 575 × 960 mm 40.6 × 22.6 × 37.8 inRequest quote
TC4732B10″ × 3.50-4 pneumatic825 × 595 × 920 mm 32.5 × 23.4 × 36.2 inRequest quote
TC4732C10″ × 3″ PU825 × 595 × 920 mm 32.5 × 23.4 × 36.2 inRequest quote
TC47368″ × 2.50-4 pneumatic600 × 590 × 1000 mm 23.6 × 23.2 × 39.4 inRequest quote
TC473810″ × 3.50-4 solid830 × 550 × 880 mm 32.7 × 21.7 × 34.6 inRequest quote
TC4740—1000 × 410 × 440 mm 39.4 × 16.1 × 17.3 inRequest quote
TC4742—600 × 430 × 590 mm 23.6 × 16.9 × 23.2 inRequest quote
TC47508″ × 1.5″ solid670 × 610 × 520 mm 26.4 × 24 × 20.5 inRequest quote
TC47149D10″ × 3″ PU957 × 625 × 1125 mm 37.7 × 24.6 × 44.3 inRequest quote

Product selection & purchasing

Sourcing Hose reels & reel carts

Applications & product range

Hose reel carts organize hose storage and movement between watering locations. Compare two-wheel, four-wheel and stationary configurations, body dimensions and wheel markings.

Configuration & purchasing requirements

Provide hose diameter and length, connection thread, water pressure, finish and wheel preference. Hose capacity and connector compatibility depend on the exact reel configuration.
