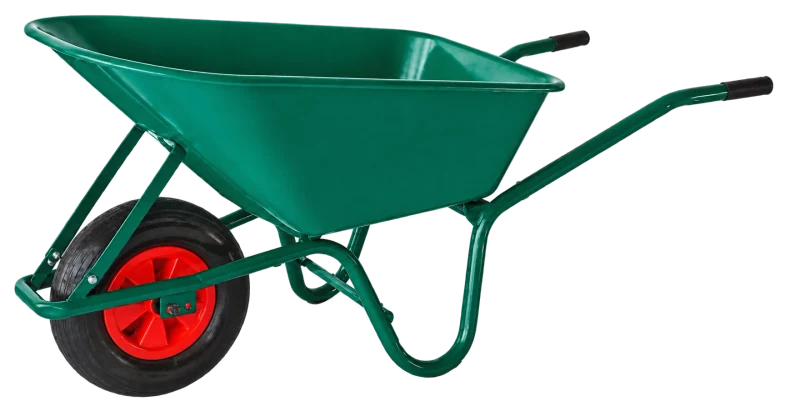

WB5006 single-wheel wheelbarrow from the factory catalog — Product overview 139 catalog model references · Product reference image.

Garden & outdoor equipment

Wheelbarrows

Wheelbarrows in multiple tray capacities and wheel configurations for garden, landscape and building-supply ranges.

Reference139 catalog model references

Request a quote View model specifications

MOQ, customization and lead time depend on the selected model and order.

Reference specifications

Wheelbarrows reference specifications
Tray volume	Water-capacity references listed by model
Dimensions	L / H / C / A / B / h follow the catalog diagram; request the model drawing

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

Tray volume, material and thickness
Required working load and application
Pneumatic or alternative wheel requirements
Assembly, nesting and shipping dimensions

Send your requirements ↗

Models & specifications

139 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Wheelbarrows: catalog model comparison
Model	Catalog load capacity	Wheel specification	Water capacity	L / H / C / A / B / h (mm)	Inquiry
WB1001P	250 kg 551 lb	16″ × 4.00-8 pneumatic	130 L 34.3 gal	1500 × 460 × 550 × 1095 × 895 × 480 59.1 × 18.1 × 21.7 × 43.1 × 35.2 × 18.9 in	Request quote
WB1002P	250 kg 551 lb	16″ × 4.00-8 pneumatic	130 L 34.3 gal	1795 × 645 × 580 × 1095 × 895 × 480 70.7 × 25.4 × 22.8 × 43.1 × 35.2 × 18.9 in	Request quote
WB1005P	200 kg 441 lb	16″ × 4.00-8 pneumatic	150 L 39.6 gal	1600 × 490 × 570 × 1110 × 845 × 420 63 × 19.3 × 22.4 × 43.7 × 33.3 × 16.5 in	Request quote
WB1006P	200 kg 441 lb	16″ × 4.00-8 pneumatic	130 L 34.3 gal	1550 × 595 × 560 × 1095 × 670 × 415 61 × 23.4 × 22 × 43.1 × 26.4 × 16.3 in	Request quote
WB1007P	200 kg 441 lb	10″ × 3.50-4 / 13″ × 5.00-6 pneumatic	130 L 34.3 gal	1250 × 990 × 435 × 1110 × 845 × 420 49.2 × 39 × 17.1 × 43.7 × 33.3 × 16.5 in	Request quote
WB1009	200 kg 441 lb	16″ × 4.00-8 pneumatic	130 L 34.3 gal	1570 × 770 × 620 × 1110 × 845 × 420 61.8 × 30.3 × 24.4 × 43.7 × 33.3 × 16.5 in	Request quote
WB1010	200 kg 441 lb	16″ × 4.80/4.00-8 pneumatic	155 L 40.9 gal	1565 × 590 × 600 × 1110 × 845 × 420 61.6 × 23.2 × 23.6 × 43.7 × 33.3 × 16.5 in	Request quote
WB1011	200 kg 441 lb	16″ × 4.00-8 pneumatic	180 L 47.6 gal	1560 × 580 × 545 × 1110 × 845 × 420 61.4 × 22.8 × 21.5 × 43.7 × 33.3 × 16.5 in	Request quote
WB1012	200 kg 441 lb	16″ × 4.00-8 PU	130 L 34.3 gal	1550 × 880 × 800 × 1095 × 895 × 480 61 × 34.6 × 31.5 × 43.1 × 35.2 × 18.9 in	Request quote
WB1012A	200 kg 441 lb	16″ × 4.00-8 PU	130 L 34.3 gal	1550 × 880 × 800 × 1095 × 895 × 480 61 × 34.6 × 31.5 × 43.1 × 35.2 × 18.9 in	Request quote
WB1014P	180 kg 397 lb	16″ × 6.50-8 pneumatic	114 L 30.1 gal	1470 × 555 × 705 × 955 × 695 × 330 57.9 × 21.9 × 27.8 × 37.6 × 27.4 × 13 in	Request quote
WB1015	180 kg 397 lb	16″ × 6.50-8 pneumatic	90 L 23.8 gal	1470 × 560 × 695 × 970 × 650 × 305 57.9 × 22 × 27.4 × 38.2 × 25.6 × 12 in	Request quote
WB1016	180 kg 397 lb	16″ × 6.50-8 pneumatic	90 L 23.8 gal	1460 × 540 × 685 × 970 × 650 × 305 57.5 × 21.3 × 27 × 38.2 × 25.6 × 12 in	Request quote
WB1017	150 kg 331 lb	16″ × 4.80/4.00-8 pneumatic	90 L 23.8 gal	1470 × 560 × 695 × 910 × 625 × 240 57.9 × 22 × 27.4 × 35.8 × 24.6 × 9.4 in	Request quote
WB1018	200 kg 441 lb	16″ × 4.00-8 pneumatic	130 L 34.3 gal	1540 × 545 × 520 × 1095 × 895 × 480 60.6 × 21.5 × 20.5 × 43.1 × 35.2 × 18.9 in	Request quote
WB1019	200 kg 441 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1475 × 565 × 500 × 970 × 650 × 305 58.1 × 22.2 × 19.7 × 38.2 × 25.6 × 12 in	Request quote
WB1020	200 kg 441 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1475 × 565 × 500 × 970 × 650 × 305 58.1 × 22.2 × 19.7 × 38.2 × 25.6 × 12 in	Request quote
WB2102B	80 kg 176 lb	10″ × 3.50-4 pneumatic	44 L 11.6 gal	1000 × 610 × 540 × 690 × 535 × 165 39.4 × 24 × 21.3 × 27.2 × 21.1 × 6.5 in	Request quote
WB2102C	80 kg 176 lb	10″ × 3.50-4 pneumatic	43 L 11.4 gal	1050 × 700 × 545 × 690 × 535 × 165 41.3 × 27.6 × 21.5 × 27.2 × 21.1 × 6.5 in	Request quote
WB2105E	80 kg 176 lb	10″ × 3.50-4 pneumatic	30 L 7.9 gal	1050 × 700 × 545 × 690 × 535 × 165 41.3 × 27.6 × 21.5 × 27.2 × 21.1 × 6.5 in	Request quote
WB2105P	100 kg 220 lb	13″ × 3.00-8 pneumatic	55 L 14.5 gal	1140 × 700 × 495 × 710 × 600 × 210 44.9 × 27.6 × 19.5 × 28 × 23.6 × 8.3 in	Request quote
WB2106A	100 kg 220 lb	10″x3.50-7″SolidL/W/H( mm):1200x730x615	50 L 13.2 gal	—	Request quote
WB2106C	100 kg 220 lb	10″x3.50-7″SolidL/W/H( mm):1200x730x615	50 L 13.2 gal	—	Request quote
WB3002	120 kg 265 lb	13″ × 3″ solid	60 L 15.9 gal	1350 × 560 × 535 × 765 × 482 × 260 53.1 × 22 × 21.1 × 30.1 × 19 × 10.2 in	Request quote
WB3004A	130 kg 287 lb	13″ × 3.25/3.00-8 pneumatic	60 L 15.9 gal	1300 × 570 × 650 × 780 × 500 × 260 51.2 × 22.4 × 25.6 × 30.7 × 19.7 × 10.2 in	Request quote
WB3004B	120 kg 265 lb	13″ × 3.25/3.00-8 pneumatic	60 L 15.9 gal	1315 × 645 × 580 × 780 × 500 × 260 51.8 × 25.4 × 22.8 × 30.7 × 19.7 × 10.2 in	Request quote
WB3008P	100 kg 220 lb	13″ × 3.25/3.00-8 pneumatic	60 L 15.9 gal	1390 × 520 × 620 × 780 × 500 × 260 54.7 × 20.5 × 24.4 × 30.7 × 19.7 × 10.2 in	Request quote
WB3010	80 kg 176 lb	13″ × 3.00-8 pneumatic	55 L 14.5 gal	1120 × 640 × 760 × 780 × 500 × 310 44.1 × 25.2 × 29.9 × 30.7 × 19.7 × 12.2 in	Request quote
WB3014	100 kg 220 lb	13″ × 3.25/3.00-8 pneumatic	43 L 11.4 gal	1230 × 730 × 555 × 820 × 665 × 215 48.4 × 28.7 × 21.9 × 32.3 × 26.2 × 8.5 in	Request quote
WB3016P	100 kg 220 lb	13″ × 3.25/3.00-8 pneumatic	43 L 11.4 gal	1300 × 625 × 515 × 810 × 680 × 160 51.2 × 24.6 × 20.3 × 31.9 × 26.8 × 6.3 in	Request quote
WB4005	130 kg 287 lb	13″ × 3″ solid	60 L 15.9 gal	1415 × 660 × 560 × 820 × 665 × 215 55.7 × 26 × 22 × 32.3 × 26.2 × 8.5 in	Request quote
WB4008	130 kg 287 lb	13″ × 3″ solid	60 L 15.9 gal	1415 × 660 × 560 × 820 × 665 × 215 55.7 × 26 × 22 × 32.3 × 26.2 × 8.5 in	Request quote
WB4014	100 kg 220 lb	14″ × 3.50-8 pneumatic	62.7 L 16.6 gal	1430 × 505 × 545 × 925 × 680 × 190 56.3 × 19.9 × 21.5 × 36.4 × 26.8 × 7.5 in	Request quote
WB4017P	100 kg 220 lb	14″ × 3.25/3.00-8 pneumatic	62.7 L 16.6 gal	1500 × 570 × 540 × 950 × 700 × 185 59.1 × 22.4 × 21.3 × 37.4 × 27.6 × 7.3 in	Request quote
WB4018A	150 kg 331 lb	14″ × 3.50-8 pneumatic	100 L 26.4 gal	1420 × 680 × 550 × 970 × 650 × 305 55.9 × 26.8 × 21.7 × 38.2 × 25.6 × 12 in	Request quote
WB4018G	150 kg 331 lb	16″ × 4.00-8 pneumatic	75 L 19.8 gal	1415 × 645 × 650 × 860 × 600 × 255 55.7 × 25.4 × 25.6 × 33.9 × 23.6 × 10 in	Request quote
WB4018P	100 kg 220 lb	14″ × 3.50-8 pneumatic	62.7 L 16.6 gal	1460 × 450 × 560 × 950 × 700 × 185 57.5 × 17.7 × 22 × 37.4 × 27.6 × 7.3 in	Request quote
WB4024A	100 kg 220 lb	13″ × 3.50-6 pneumatic	60 L 15.9 gal	1305 × 620 × 585 × 810 × 610 × 200 51.4 × 24.4 × 23 × 31.9 × 24 × 7.9 in	Request quote
WB4024B	100 kg 220 lb	13″ × 3.50-6 pneumatic	60 L 15.9 gal	1270 × 613 × 550 × 810 × 610 × 200 50 × 24.1 × 21.7 × 31.9 × 24 × 7.9 in	Request quote
WB4024C	100 kg 220 lb	13″ × 3″ PU	60 L 15.9 gal	1305 × 620 × 585 × 800 × 605 × 200 51.4 × 24.4 × 23 × 31.5 × 23.8 × 7.9 in	Request quote
WB4028A	150 kg 331 lb	14″ × 3.50-8 pneumatic	60 L 15.9 gal	1355 × 590 × 555 × 820 × 665 × 215 53.3 × 23.2 × 21.9 × 32.3 × 26.2 × 8.5 in	Request quote
WB4029	120 kg 265 lb	16″ × 4.00-8 pneumatic	60 L 15.9 gal	1460 × 555 × 540 × 900 × 665 × 260 57.5 × 21.9 × 21.3 × 35.4 × 26.2 × 10.2 in	Request quote
WB4030	120 kg 265 lb	13″ × 3.25/3.00-8 pneumatic	60 L 15.9 gal	1530 × 675 × 575 × 900 × 665 × 260 60.2 × 26.6 × 22.6 × 35.4 × 26.2 × 10.2 in	Request quote
WB4032	100 kg 220 lb	16″ × 4.00-8 pneumatic	62.7 L 16.6 gal	1460 × 515 × 535 × 925 × 680 × 190 57.5 × 20.3 × 21.1 × 36.4 × 26.8 × 7.5 in	Request quote
WB4033	120 kg 265 lb	13″ × 3.25/3.00-8 pneumatic	60 L 15.9 gal	1450 × 635 × 495 × 900 × 665 × 260 57.1 × 25 × 19.5 × 35.4 × 26.2 × 10.2 in	Request quote
WB4035	120 kg 265 lb	16″ × 4.00-8 pneumatic	60 L 15.9 gal	1500 × 660 × 480 × 900 × 665 × 260 59.1 × 26 × 18.9 × 35.4 × 26.2 × 10.2 in	Request quote
WB4036	120 kg 265 lb	16″ × 4.00-8 pneumatic	60 L 15.9 gal	1500 × 590 × 650 × 840 × 650 × 240 59.1 × 23.2 × 25.6 × 33.1 × 25.6 × 9.4 in	Request quote
WB4502	160 kg 353 lb	13″ × 3.25/3.00-8 pneumatic	70 L 18.5 gal	1440 × 480 × 510 × 910 × 625 × 240 56.7 × 18.9 × 20.1 × 35.8 × 24.6 × 9.4 in	Request quote
WB4505	160 kg 353 lb	14″ × 3.50-8 pneumatic	70 L 18.5 gal	1450 × 490 × 520 × 910 × 625 × 240 57.1 × 19.3 × 20.5 × 35.8 × 24.6 × 9.4 in	Request quote
WB4508	160 kg 353 lb	14″ × 3.50-8 pneumatic	70 L 18.5 gal	1500 × 480 × 555 × 910 × 625 × 240 59.1 × 18.9 × 21.9 × 35.8 × 24.6 × 9.4 in	Request quote
WB4508P	160 kg 353 lb	16″ × 4.00-8 pneumatic	70 L 18.5 gal	1495 × 680 × 565 × 920 × 625 × 260 58.9 × 26.8 × 22.2 × 36.2 × 24.6 × 10.2 in	Request quote
WB4510	150 kg 331 lb	14″ × 3.50-8 pneumatic	66 L 17.4 gal	1335 × 685 × 555 × 910 × 625 × 240 52.6 × 27 × 21.9 × 35.8 × 24.6 × 9.4 in	Request quote
WB4510A	150 kg 331 lb	14″ × 3.50-8 pneumatic	66 L 17.4 gal	1335 × 685 × 555 × 910 × 625 × 240 52.6 × 27 × 21.9 × 35.8 × 24.6 × 9.4 in	Request quote
WB4511	150 kg 331 lb	16″ × 4.00-8 pneumatic	66 L 17.4 gal	1340 × 755 × 630 × 920 × 625 × 260 52.8 × 29.7 × 24.8 × 36.2 × 24.6 × 10.2 in	Request quote
WB4511-A	150 kg 331 lb	16″ × 4.00-8 pneumatic	66 L 17.4 gal	1340 × 755 × 630 × 920 × 625 × 260 52.8 × 29.7 × 24.8 × 36.2 × 24.6 × 10.2 in	Request quote
WB4512	80 kg 176 lb	14″ × 4.00-6 pneumatic	60 L 15.9 gal	1370 × 655 × 290 × 820 × 665 × 215 53.9 × 25.8 × 11.4 × 32.3 × 26.2 × 8.5 in	Request quote
WB4519	120 kg 265 lb	16″ × 4.00-8 pneumatic	75 L 19.8 gal	1405 × 630 × 525 × 860 × 600 × 280 55.3 × 24.8 × 20.7 × 33.9 × 23.6 × 11 in	Request quote
WB4523	150 kg 331 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1630 × 530 × 635 × 910 × 625 × 245 64.2 × 20.9 × 25 × 35.8 × 24.6 × 9.6 in	Request quote
WB5006	150 kg 331 lb	16″ × 4.00-8 pneumatic	80 L 21.1 gal	1505 × 480 × 600 × 940 × 600 × 340 59.3 × 18.9 × 23.6 × 37 × 23.6 × 13.4 in	Request quote
WB5006A	150 kg 331 lb	16″ × 4.00-8 pneumatic	80 L 21.1 gal	1490 × 610 × 700 × 940 × 600 × 340 58.7 × 24 × 27.6 × 37 × 23.6 × 13.4 in	Request quote
WB5006B	120 kg 265 lb	13″ × 3.25/3.00-8 pneumatic	80 L 21.1 gal	1435 × 600 × 550 × 860 × 600 × 280 56.5 × 23.6 × 21.7 × 33.9 × 23.6 × 11 in	Request quote
WB5006C	150 kg 331 lb	16″ × 4″ PU	80 L 21.1 gal	1505 × 480 × 600 × 940 × 600 × 340 59.3 × 18.9 × 23.6 × 37 × 23.6 × 13.4 in	Request quote
WB5006D	150 kg 331 lb	16″ × 4.00-8 pneumatic	80 L 21.1 gal	1470 × 540 × 620 × 940 × 600 × 340 57.9 × 21.3 × 24.4 × 37 × 23.6 × 13.4 in	Request quote
WB5007A	150 kg 331 lb	16″ × 4.00-8 pneumatic	70 L 18.5 gal	1295 × 600 × 475 × 815 × 580 × 215 51 × 23.6 × 18.7 × 32.1 × 22.8 × 8.5 in	Request quote
WB5007B	100 kg 220 lb	13″ × 3.25/3.00-8 pneumatic	75 L 19.8 gal	1420 × 530 × 540 × 825 × 605 × 280 55.9 × 20.9 × 21.3 × 32.5 × 23.8 × 11 in	Request quote
WB5007S	150 kg 331 lb	13″ × 3″ solid	60 L 15.9 gal	1440 × 550 × 520 × 880 × 670 × 290 56.7 × 21.7 × 20.5 × 34.6 × 26.4 × 11.4 in	Request quote
WB5008	150 kg 331 lb	16″ × 4.00-8 pneumatic	75 L 19.8 gal	1425 × 695 × 590 × 900 × 560 × 260 56.1 × 27.4 × 23.2 × 35.4 × 22 × 10.2 in	Request quote
WB5008A	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1470 × 585 × 565 × 1000 × 710 × 360 57.9 × 23 × 22.2 × 39.4 × 28 × 14.2 in	Request quote
WB5010	150 kg 331 lb	14″ × 3.50-8 pneumatic	80 L 21.1 gal	1295 × 645 × 505 × 860 × 600 × 280 51 × 25.4 × 19.9 × 33.9 × 23.6 × 11 in	Request quote
WB5011	150 kg 331 lb	16″ × 4.00-8 pneumatic	65 L 17.2 gal	1495 × 650 × 605 × 900 × 560 × 260 58.9 × 25.6 × 23.8 × 35.4 × 22 × 10.2 in	Request quote
WB5017	120 kg 265 lb	13″ × 4.00-6 pneumatic	75 L 19.8 gal	1400 × 710 × 590 × 860 × 600 × 255 55.1 × 28 × 23.2 × 33.9 × 23.6 × 10 in	Request quote
WB5017A	150 kg 331 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1430 × 510 × 645 × 950 × 640 × 280 56.3 × 20.1 × 25.4 × 37.4 × 25.2 × 11 in	Request quote
WB5021	150 kg 331 lb	16″ × 4.00-8 pneumatic	85 L 22.5 gal	1505 × 660 × 590 × 860 × 600 × 280 59.3 × 26 × 23.2 × 33.9 × 23.6 × 11 in	Request quote
WB5303	150 kg 331 lb	16″ × 4.00-8 pneumatic	80 L 21.1 gal	1490 × 585 × 540 × 935 × 600 × 325 58.7 × 23 × 21.3 × 36.8 × 23.6 × 12.8 in	Request quote
WB5501	120 kg 265 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1490 × 495 × 610 × 960 × 700 × 300 58.7 × 19.5 × 24 × 37.8 × 27.6 × 11.8 in	Request quote
WB6001P	150 kg 331 lb	16″ × 6.50-8 pneumatic	100 L 26.4 gal	1470 × 500 × 550 × 1030 × 660 × 325 57.9 × 19.7 × 21.7 × 40.6 × 26 × 12.8 in	Request quote
WB6002	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1520 × 520 × 580 × 860 × 600 × 280 59.8 × 20.5 × 22.8 × 33.9 × 23.6 × 11 in	Request quote
WB6003P	150 kg 331 lb	16″ × 4.00-8 pneumatic	70 L 18.5 gal	1490 × 625 × 575 × 920 × 625 × 260 58.7 × 24.6 × 22.6 × 36.2 × 24.6 × 10.2 in	Request quote
WB6007P	150 kg 331 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1500 × 615 × 550 × 1030 × 660 × 325 59.1 × 24.2 × 21.7 × 40.6 × 26 × 12.8 in	Request quote
WB6009	150 kg 331 lb	16″ × 4.50-8 pneumatic	100 L 26.4 gal	1580 × 475 × 535 × 970 × 650 × 305 62.2 × 18.7 × 21.1 × 38.2 × 25.6 × 12 in	Request quote
WB6011	180 kg 397 lb	16″ × 6.50-8 pneumatic	100 L 26.4 gal	1540 × 550 × 580 × 960 × 695 × 315 60.6 × 21.7 × 22.8 × 37.8 × 27.4 × 12.4 in	Request quote
WB6012	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1490 × 615 × 590 × 910 × 650 × 305 58.7 × 24.2 × 23.2 × 35.8 × 25.6 × 12 in	Request quote
WB6013	150 kg 331 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1545 × 510 × 590 × 1040 × 670 × 265 60.8 × 20.1 × 23.2 × 40.9 × 26.4 × 10.4 in	Request quote
WB6013A	150 kg 331 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1520 × 500 × 610 × 1040 × 670 × 265 59.8 × 19.7 × 24 × 40.9 × 26.4 × 10.4 in	Request quote
WB6015	180 kg 397 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1525 × 630 × 540 × 950 × 640 × 280 60 × 24.8 × 21.3 × 37.4 × 25.2 × 11 in	Request quote
WB6018	150 kg 331 lb	16″ × 6.50-8 pneumatic	100 L 26.4 gal	1515 × 535 × 585 × 960 × 695 × 315 59.6 × 21.1 × 23 × 37.8 × 27.4 × 12.4 in	Request quote
WB6018A	180 kg 397 lb	16″ × 6.50-8 pneumatic	100 L 26.4 gal	1515 × 535 × 585 × 960 × 695 × 315 59.6 × 21.1 × 23 × 37.8 × 27.4 × 12.4 in	Request quote
WB6019P	200 kg 441 lb	16″ × 6.50-8 pneumatic	114 L 30.1 gal	1510 × 585 × 575 × 990 × 715 × 370 59.4 × 23 × 22.6 × 39 × 28.1 × 14.6 in	Request quote
WB6020P	150 kg 331 lb	16″ × 6.50-8 pneumatic	114 L 30.1 gal	1500 × 590 × 560 × 990 × 715 × 370 59.1 × 23.2 × 22 × 39 × 28.1 × 14.6 in	Request quote
WB6021P	150 kg 331 lb	16″ × 6.50-8 pneumatic	114 L 30.1 gal	1490 × 590 × 580 × 990 × 710 × 350 58.7 × 23.2 × 22.8 × 39 × 28 × 13.8 in	Request quote
WB6023P	150 kg 331 lb	16″ × 4.00-8 pneumatic	114 L 30.1 gal	1500 × 710 × 750 × 990 × 710 × 350 59.1 × 28 × 29.5 × 39 × 28 × 13.8 in	Request quote
WB6024	180 kg 397 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1505 × 500 × 565 × 970 × 650 × 305 59.3 × 19.7 × 22.2 × 38.2 × 25.6 × 12 in	Request quote
WB6024A	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1505 × 595 × 605 × 925 × 660 × 305 59.3 × 23.4 × 23.8 × 36.4 × 26 × 12 in	Request quote
WB6024B	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1550 × 565 × 610 × 905 × 690 × 300 61 × 22.2 × 24 × 35.6 × 27.2 × 11.8 in	Request quote
WB6026	180 kg 397 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1400 × 635 × 575 × 970 × 650 × 305 55.1 × 25 × 22.6 × 38.2 × 25.6 × 12 in	Request quote
WB6038P	150 kg 331 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1495 × 770 × 545 × 955 × 695 × 330 58.9 × 30.3 × 21.5 × 37.6 × 27.4 × 13 in	Request quote
WB6040	150 kg 331 lb	16″ × 4.00-8 pneumatic	70 L 18.5 gal	1500 × 540 × 530 × 910 × 625 × 240 59.1 × 21.3 × 20.9 × 35.8 × 24.6 × 9.4 in	Request quote
WB6041	180 kg 397 lb	16″ × 6.50-8 pneumatic	100 L 26.4 gal	1560 × 560 × 575 × 960 × 695 × 315 61.4 × 22 × 22.6 × 37.8 × 27.4 × 12.4 in	Request quote
WB6042	200 kg 441 lb	16″ × 6.50-8 pneumatic	100 L 26.4 gal	1520 × 510 × 695 × 970 × 650 × 305 59.8 × 20.1 × 27.4 × 38.2 × 25.6 × 12 in	Request quote
WB6043	180 kg 397 lb	16″ × 6.50-8 pneumatic	100 L 26.4 gal	1530 × 550 × 580 × 960 × 695 × 315 60.2 × 21.7 × 22.8 × 37.8 × 27.4 × 12.4 in	Request quote
WB6044	180 kg 397 lb	16″ × 6.50-8 pneumatic	100 L 26.4 gal	1500 × 540 × 520 × 960 × 695 × 315 59.1 × 21.3 × 20.5 × 37.8 × 27.4 × 12.4 in	Request quote
WB6045P	180 kg 397 lb	16″ × 6.50-8 pneumatic	114 L 30.1 gal	1520 × 550 × 520 × 990 × 715 × 370 59.8 × 21.7 × 20.5 × 39 × 28.1 × 14.6 in	Request quote
WB6046P	150 kg 331 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1480 × 560 × 520 × 845 × 645 × 290 58.3 × 22 × 20.5 × 33.3 × 25.4 × 11.4 in	Request quote
WB6047P	200 kg 441 lb	16″ × 6.50-8 pneumatic	114 L 30.1 gal	1500 × 520 × 670 × 990 × 715 × 370 59.1 × 20.5 × 26.4 × 39 × 28.1 × 14.6 in	Request quote
WB6048P	150 kg 331 lb	16″ × 4.00-8 pneumatic	114 L 30.1 gal	1440 × 530 × 560 × 910 × 560 × 350 56.7 × 20.9 × 22 × 35.8 × 22 × 13.8 in	Request quote
WB6080	100 kg 220 lb	13″ × 3.50-6 pneumatic	80 L 21.1 gal	1348 × 595 × 585 × 860 × 600 × 255 53.1 × 23.4 × 23 × 33.9 × 23.6 × 10 in	Request quote
WB6080B	150 kg 331 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1500 × 670 × 570 × 950 × 640 × 280 59.1 × 26.4 × 22.4 × 37.4 × 25.2 × 11 in	Request quote
WB6090A	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1565 × 565 × 545 × 970 × 650 × 305 61.6 × 22.2 × 21.5 × 38.2 × 25.6 × 12 in	Request quote
WB6090B	180 kg 397 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1565 × 695 × 595 × 955 × 595 × 300 61.6 × 27.4 × 23.4 × 37.6 × 23.4 × 11.8 in	Request quote
WB6100	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1565 × 555 × 540 × 970 × 650 × 305 61.6 × 21.9 × 21.3 × 38.2 × 25.6 × 12 in	Request quote
WB6100A	180 kg 397 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1630 × 615 × 610 × 965 × 670 × 285 64.2 × 24.2 × 24 × 38 × 26.4 × 11.2 in	Request quote
WB6103	150 kg 331 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1500 × 560 × 565 × 1040 × 670 × 265 59.1 × 22 × 22.2 × 40.9 × 26.4 × 10.4 in	Request quote
WB6106	150 kg 331 lb	16″ × 6.50-8 pneumatic	100 L 26.4 gal	1485 × 620 × 585 × 970 × 650 × 305 58.5 × 24.4 × 23 × 38.2 × 25.6 × 12 in	Request quote
WB6108	150 kg 331 lb	16″ × 6.50-8 pneumatic	100 L 26.4 gal	1470 × 540 × 575 × 960 × 695 × 315 57.9 × 21.3 × 22.6 × 37.8 × 27.4 × 12.4 in	Request quote
WB6113P	120 kg 265 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1530 × 500 × 575 × 1030 × 660 × 325 60.2 × 19.7 × 22.6 × 40.6 × 26 × 12.8 in	Request quote
WB6116	150 kg 331 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1425 × 705 × 590 × 950 × 640 × 280 56.1 × 27.8 × 23.2 × 37.4 × 25.2 × 11 in	Request quote
WB6117P	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1500 × 565 × 540 × 1030 × 660 × 325 59.1 × 22.2 × 21.3 × 40.6 × 26 × 12.8 in	Request quote
WB6118P	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1500 × 745 × 560 × 1030 × 660 × 325 59.1 × 29.3 × 22 × 40.6 × 26 × 12.8 in	Request quote
WB6119P	150 kg 331 lb	16″ × 6.50-8 pneumatic	114 L 30.1 gal	1510 × 585 × 575 × 990 × 710 × 345 59.4 × 23 × 22.6 × 39 × 28 × 13.6 in	Request quote
WB6120P	150 kg 331 lb	16″ × 4.00-8 pneumatic	114 L 30.1 gal	1460 × 540 × 580 × 940 × 560 × 320 57.5 × 21.3 × 22.8 × 37 × 22 × 12.6 in	Request quote
WB6121P	150 kg 331 lb	16″ × 4.00-8 pneumatic	80 L 21.1 gal	1440 × 580 × 580 × 940 × 600 × 340 56.7 × 22.8 × 22.8 × 37 × 23.6 × 13.4 in	Request quote
WB6122	150 kg 331 lb	16″ × 4.00-8 pneumatic	75 L 19.8 gal	1420 × 540 × 510 × 860 × 600 × 280 55.9 × 21.3 × 20.1 × 33.9 × 23.6 × 11 in	Request quote
WB6122A	150 kg 331 lb	16″ × 4.00-8 pneumatic	75 L 19.8 gal	1400 × 580 × 670 × 860 × 600 × 280 55.1 × 22.8 × 26.4 × 33.9 × 23.6 × 11 in	Request quote
WB6123	150 kg 331 lb	16″ × 4.00-8 PU	100 L 26.4 gal	1440 × 520 × 520 × 970 × 650 × 305 56.7 × 20.5 × 20.5 × 38.2 × 25.6 × 12 in	Request quote
WB6124	150 kg 331 lb	16″ × 4.00-8 pneumatic	85 L 22.5 gal	1460 × 555 × 550 × 860 × 600 × 280 57.5 × 21.9 × 21.7 × 33.9 × 23.6 × 11 in	Request quote
WB6125	150 kg 331 lb	16″ × 4.00-8 PU	100 L 26.4 gal	1560 × 570 × 620 × 980 × 650 × 300 61.4 × 22.4 × 24.4 × 38.6 × 25.6 × 11.8 in	Request quote
WB6126	120 kg 265 lb	16″ × 4.00-8 pneumatic	70 L 18.5 gal	1480 × 515 × 520 × 910 × 625 × 240 58.3 × 20.3 × 20.5 × 35.8 × 24.6 × 9.4 in	Request quote
WB6128	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1530 × 600 × 590 × 965 × 720 × 260 60.2 × 23.6 × 23.2 × 38 × 28.3 × 10.2 in	Request quote
WB6129	150 kg 331 lb	16″ × 4.00-10 PU	100 L 26.4 gal	1500 × 570 × 600 × 970 × 650 × 305 59.1 × 22.4 × 23.6 × 38.2 × 25.6 × 12 in	Request quote
WB6130	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1510 × 580 × 560 × 895 × 620 × 355 59.4 × 22.8 × 22 × 35.2 × 24.4 × 14 in	Request quote
WB6134	150 kg 331 lb	16″ × 4.00-10 PU	100 L 26.4 gal	1480 × 650 × 600 × 970 × 585 × 300 58.3 × 25.6 × 23.6 × 38.2 × 23 × 11.8 in	Request quote
WB6143	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1500 × 540 × 630 × 1000 × 700 × 320 59.1 × 21.3 × 24.8 × 39.4 × 27.6 × 12.6 in	Request quote
WB6144	150 kg 331 lb	16″ × 4.00-8 pneumatic	100 L 26.4 gal	1500 × 510 × 590 × 975 × 650 × 300 59.1 × 20.1 × 23.2 × 38.4 × 25.6 × 11.8 in	Request quote
WB6501P	180 kg 397 lb	16″ × 4.00-8 pneumatic	114 L 30.1 gal	1575 × 555 × 520 × 990 × 700 × 380 62 × 21.9 × 20.5 × 39 × 27.6 × 15 in	Request quote
WB6530P	150 kg 331 lb	16″ × 4.00-8 pneumatic	114 L 30.1 gal	1500 × 730 × 590 × 990 × 700 × 380 59.1 × 28.7 × 23.2 × 39 × 27.6 × 15 in	Request quote
WB6531	250 kg 551 lb	16″ × 4.00-8 pneumatic	120 L 31.7 gal	1470 × 780 × 690 × 970 × 660 × 320 57.9 × 30.7 × 27.2 × 38.2 × 26 × 12.6 in	Request quote
WB7001	180 kg 397 lb	16″ × 4.00-8 pneumatic	114 L 30.1 gal	1500 × 495 × 590 × 1000 × 700 × 320 59.1 × 19.5 × 23.2 × 39.4 × 27.6 × 12.6 in	Request quote
WB9502P	200 kg 441 lb	16″ × 4.00-8 flat-free	114 L 30.1 gal	1495 × 615 × 545 × 990 × 700 × 380 58.9 × 24.2 × 21.5 × 39 × 27.6 × 15 in	Request quote
WB9506P	200 kg 441 lb	16″ × 4.00-8 pneumatic	90 L 23.8 gal	1490 × 585 × 600 × 1030 × 660 × 325 58.7 × 23 × 23.6 × 40.6 × 26 × 12.8 in	Request quote

Product selection & purchasing

Sourcing Wheelbarrows

Applications & product range

Compare wheelbarrow load references, water capacity, tire marking and the catalog dimensional scheme. The range includes multiple tray and undercarriage layouts for different carrying requirements.

Configuration & purchasing requirements

Specify tray capacity and material, frame construction, wheel configuration, intended load and packing arrangement. Confirm the exact drawing and load conditions for the selected model.

OEM options, samples & sourcing services →
